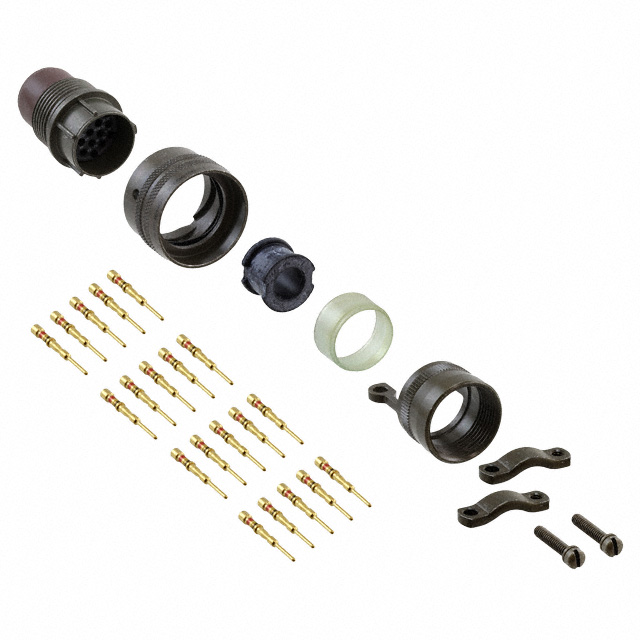

PT06SE-14-19P(SR)

Active

Amphenol Industrial Operations

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT06SE-14-19P(SR)

Active

Amphenol Industrial Operations

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT06SE-14-19P(SR)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Termination	Crimp

PT06SE Series

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Backshell Material, Plating	Shielding	Primary Material	Insert Material	Contact Material	Termination	Voltage Rating	Connector Type	Fastening Type	Shell Size - Insert	Qualification	Number of Positions	Shell Finish	Contact Finish - Mating	Shell Material	Applications	Mounting Type	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Current Rating (Amps)	Features	Type	Housing Color	Contact Type	Note	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Shape	Contact Size
Amphenol Industrial Operations PT06SE12-8S-470	Black	-55 °C	125 °C	N	Environment Resistant	Aluminum Black Zinc Cobalt	Unshielded	Metal	Neoprene	Copper Alloy	Crimp	600 VAC	Female Sockets Plug	Bayonet Lock	12-8	MIL-DTL-26482 Series I	8	Black Zinc Cobalt	Gold	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Free Hanging (In-Line)
Amphenol Industrial Operations PT06SE-14-19P(SR)	Olive Drab	-55 °C	125 °C	N	Environment Sealed	Aluminum Olive Drab Cadmium	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Male Pins Plug	Bayonet Lock		MIL-DTL-26482 Series I	19	Olive Drab Chromate over Cadmium	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)	19	14	7.5 A	Strain Relief
Amphenol Industrial Operations PT06SE-10-6P(470)	Black	-55 °C	125 °C	N	Environment Sealed	Aluminum Black Zinc Cobalt	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Male Pins Plug	Bayonet Lock	10-6	MIL-DTL-26482 Series I	6	Black Zinc Cobalt	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)			7.5 A	Strain Relief
Amphenol Industrial Operations PT06SE-16-26SLC		-55 °C	125 °C	N	Environment Resistant		Unshielded		Neoprene				Plug Housing	Bayonet Lock		MIL-DTL-26482 Series I	26	Chromate over Cadmium		Aluminum		Free Hanging (In-Line)				Backshell Coupling Nut	For Female Sockets	Olive Drab	Crimp	Contacts Not Included	16	26	Circular	20
Amphenol Industrial Operations PT06SE8-33S-SR	Olive Drab	-55 °C	125 °C	N	Environment Resistant	Aluminum Olive Drab Cadmium	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Female Sockets Plug	Bayonet Lock	8-33	MIL-DTL-26482 Series I		Olive Drab Chromate over Cadmium	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)				Strain Relief
Amphenol Industrial Operations PT06SE-12-10P(470)	Black	-55 °C	125 °C	N	Environment Sealed	Aluminum Black Zinc Cobalt	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Male Pins Plug	Bayonet Lock		MIL-DTL-26482 Series I	10	Black Zinc Cobalt	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)			7.5 A	Strain Relief
Amphenol Industrial Operations PT06SE-16-8S(470)	Black	-55 °C	125 °C	N	Environment Sealed	Aluminum Black Zinc Cobalt	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Female Sockets Plug	Bayonet Lock		MIL-DTL-26482 Series I	8	Black Zinc Cobalt	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)			13 A	Strain Relief
Amphenol Industrial Operations PT06SE-24-61P(470)	Black	-55 °C	125 °C	N	Environment Sealed	Aluminum Black Zinc Cobalt	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Male Pins Plug	Bayonet Lock		MIL-DTL-26482 Series I	61	Black Zinc Cobalt	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)			7.5 A	Strain Relief					24	61
Amphenol Industrial Operations PT06SE-12-8P	Olive Drab	-55 °C	125 °C	N	Environment Sealed	Aluminum Olive Drab Cadmium	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Male Pins Plug	Bayonet Lock	12-8	MIL-DTL-26482 Series I	8	Olive Drab Chromate over Cadmium	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)				Backshell Coupling Nut
Amphenol Industrial Operations PT06SE-12-3S	Olive Drab	-55 °C	125 °C	N	Environment Sealed	Aluminum Olive Drab Cadmium	Unshielded	Metal	Neoprene	Copper Alloy	Crimp		Female Sockets Plug	Bayonet Lock	12-3	MIL-DTL-26482 Series I		Olive Drab Chromate over Cadmium	Gold	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Free Hanging (In-Line)			13 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 113.43
		10	$ 104.08
		25	$ 100.08
		50	$ 96.74
		100	$ 91.41

Description

General part information

PT06SE Series

19 Position Circular Connector Plug, Male Pins Crimp
