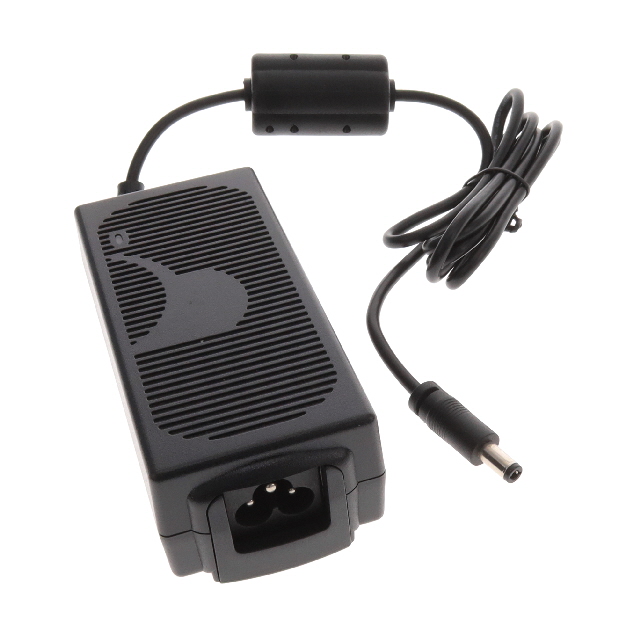

RR9LE5410LCP-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR9LE5410LCP-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 12V 65W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LE5410LCP-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	FCC, S-Mark, UKRSepro, cETLus, VCCI, CE, EAC, PSE, ETL, CB
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5.41 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class I), Desktop
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	60601-1-2, 62368-1, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

RR9LE5410 Series

Part	Standard Number	Applications	Polarization	Cord Length	Cord Length	Region Utilized	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Input Type	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Form	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Approval Agency	Polarization [custom]	Polarization [custom]	Output Connector [z]
GlobTek, Inc. RR9LE5410LCP-IMR6B	60601-1-11 60601-1-2 62368-1	ITE (Commercial) Medical	Positive Center	1.2 m	47.2 in	International	65 W	Barrel Plug	2.5 mm 5.5 mm	11 mm	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	CoC Tier 2 Level VI	Cord Multi-Blade	12 V	90 VAC	264 VAC	-20 C	40 °C	Desktop Wall Mount (Class I)	5.41 A	150 mW	CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI
GlobTek, Inc. RR9LE5410T00-IMR6B	60601-1-11 60601-1-2 62368-1	ITE (Commercial) Medical		1.2 m	47.2 in	International	65 W	1.3mm x 3.5mm Barrel Plug Kit			36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	CoC Tier 2 Level VI	Cord Multi-Blade	12 V	90 VAC	264 VAC	-20 C	40 °C	Desktop Wall Mount (Class I)	5.41 A	150 mW	CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI	Negative	Positive
GlobTek, Inc. RR9LE5410CCP-IMR6B	60601-1-11 60601-1-2 62368-1	ITE (Commercial) Medical	Positive Center	1.2 m	47.2 in	International	65 W	Barrel Plug	2.1 mm 5.5 mm		36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	CoC Tier 2 Level VI	Cord Multi-Blade	12 V	90 VAC	264 VAC	-20 C	40 °C	Desktop Wall Mount (Class I)	5.41 A	150 mW	CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI			11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.65
		5	$ 20.83
		10	$ 20.09
		30	$ 18.97
		60	$ 18.30
		120	$ 17.65
		270	$ 16.92
		510	$ 16.37

Description

General part information

RR9LE5410 Series

12V 65 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
