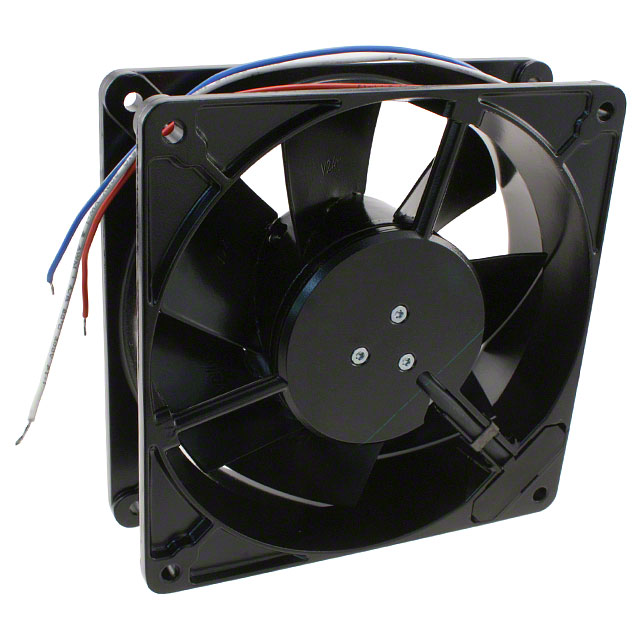

W2G115-AE31-15

Active

ebm-papst Inc.

FAN AXIAL 127X38MM BALL 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 127X38MM BALL 24VDC

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Noise	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Termination	Fan Type	Air Flow	Air Flow	Width [y]	Bearing Type	Material - Blade	Weight	Weight	Voltage - Rated	Approval Agency
ebm-papst Inc. W2G115-AE31-01	127 mm	127 mm	48 dB	Aluminum	18 VDC	30 V	5.7 W	2 Wire Leads	Tubeaxial	3.64 m³/min	130 CFM	38 mm	Ball	Steel	725.7 g	1.6 lbs	24 VDC
ebm-papst Inc. W2G115-AE31-15	127 mm	127 mm	48 dB	Aluminum	18 VDC	30 V	5.7 W		Tubeaxial	3.64 m³/min	130 CFM	38 mm	Ball	Steel	725.7 g	1.6 lbs	24 VDC	CSA UL
ebm-papst Inc. W2G115-AG77-85	127 mm	127 mm							Tubeaxial			38 mm	Ball
ebm-papst Inc. W2G115-AD17-01	127 mm	127 mm	44 dB	Aluminum	18 VDC	30 V	4.7 W	2 Wire Leads	Tubeaxial	3.3 m³/min	118 CFM	38 mm	Ball	Steel	589.7 g	1.3 lbs	24 VDC
ebm-papst Inc. W2G115-AE31-13	127 mm	127 mm	48 dB	Aluminum	18 VDC	30 V	5.7 W	2 Terminals	Tubeaxial	3.64 m³/min	130 CFM	38 mm	Ball	Steel	725.7 g	1.6 lbs	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
