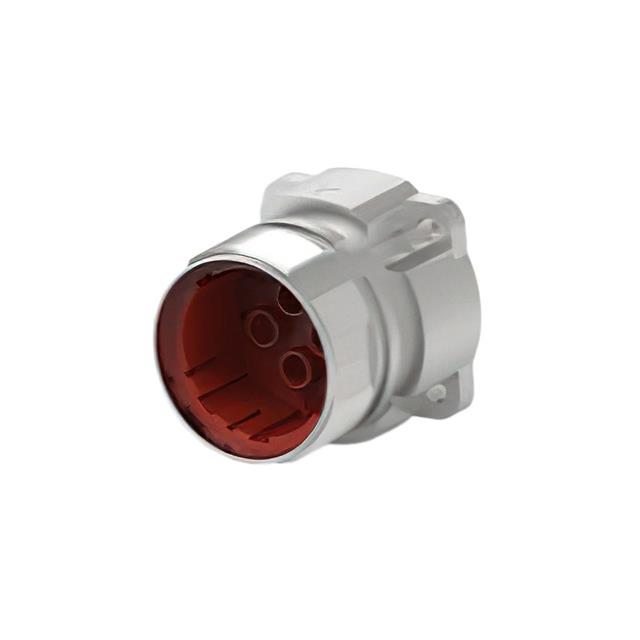

CEA270N00000030000

Active

TE Intercontec

CONN RCPT HSG MALE 6POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 6POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	CEA270N00000030000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M40-6
Shielding	Unshielded
Type	For Male Pins

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Contact Shape	Type	Note	Connector Type	Includes	Number of Positions	Orientation	Fastening Type	Shell Material	Mounting Feature	Shell Size - Insert	Insert Material	Material Flammability Rating	Housing Color	Shielding	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions
TE Intercontec CEA270N00000030000	-20 C	130 °C	IP66/IP67	Nickel	Circular	For Male Pins	Contacts Not Included	Receptacle Housing	1 Connector 1 O-Ring	6	Keyed	Push-Twist	Zinc Die Cast	Flange	M40-6	Polyamide (PA66) Nylon 6/6	UL94 V-0	Silver	Unshielded
TE Intercontec CEA271N00000051000	-20 C	130 °C	IP66/IP67	Nickel	Circular	For Male Pins	Contacts Not Included	Receptacle Housing	1 Connector 1 O-Ring		Keyed	Push-Twist	Zinc Die Cast	Flange	M40-8	Polyamide (PA66) Nylon 6/6	UL94 V-0	Silver	Unshielded	3	8	4	PE
TE Intercontec CEA270N00000051000	-20 C	130 °C	IP66/IP67	Nickel	Circular	For Male Pins	Contacts Not Included	Receptacle Housing	1 Connector 1 O-Ring	6	Keyed	Push-Twist	Zinc Die Cast	Flange	M40-6	Polyamide (PA66) Nylon 6/6	UL94 V-0	Silver	Unshielded
TE Intercontec CEA271N00000030000	-20 C	130 °C	IP66/IP67	Nickel	Circular	For Male Pins	Contacts Not Included	Receptacle Housing			Keyed	Push-Twist	Zinc Die Cast	Flange	M40-8	Polyamide (PA66) Nylon 6/6	UL94 V-0	Silver	Unshielded	3	8	4	PE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (2 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
