9101-9573-001

Active

Radiall USA, Inc.

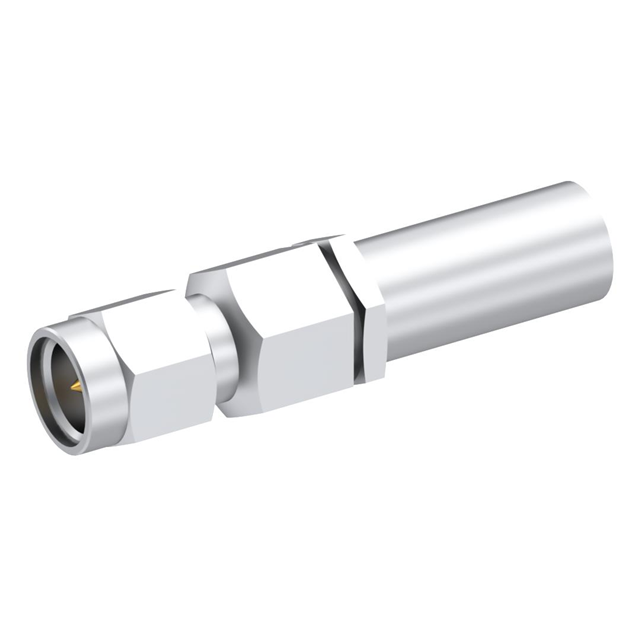

SMA / STRAIGHT PLUG MALE CRIMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG MALE CRIMP T

Technical Specifications

Parameters and characteristics for this part

Specification	9101-9573-001

Body Material	Stainless Steel
Cable Group	M17/60, RG-142, 223, M17/158, M17/84
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Material	Mounting Type	Housing Color	Center Contact Plating	Impedance	Dielectric Material	Center Contact Material	Number of Ports	Connector Style	Mating Cycles	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Contact Termination	Connector Type	Cable Group	Voltage Rating	Cable Group
Radiall USA, Inc. 9101-9573-001	Stainless Steel	Free Hanging (In-Line)	Silver	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	SMA	500	12.4 GHz	-65 ░C	165 °C	Crimp	Crimp	Male Pin Plug	223 M17/158 M17/60 M17/84 RG-142
Radiall USA, Inc. 9101-9573-003	Stainless Steel	Free Hanging (In-Line)	Silver	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	SMA	500	12.4 GHz	-65 ░C	165 °C	Crimp	Crimp	Male Pin Plug	179 316 M17/113 M17/119 M17/172 M17/189 RG-174	335 V
Radiall USA, Inc. 9101-9573-006	Stainless Steel	Free Hanging (In-Line)		Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	SMA	500	18 GHz	-65 ░C	165 °C	Crimp	Crimp	Male Pin Plug	RG-58		141
Radiall USA, Inc. 9101-9573-019	Stainless Steel	Free Hanging (In-Line)		Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	SMA	500	18 GHz	-65 ░C	165 °C	Crimp	Crimp	Male Pin Plug	RD-316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 33.38

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
