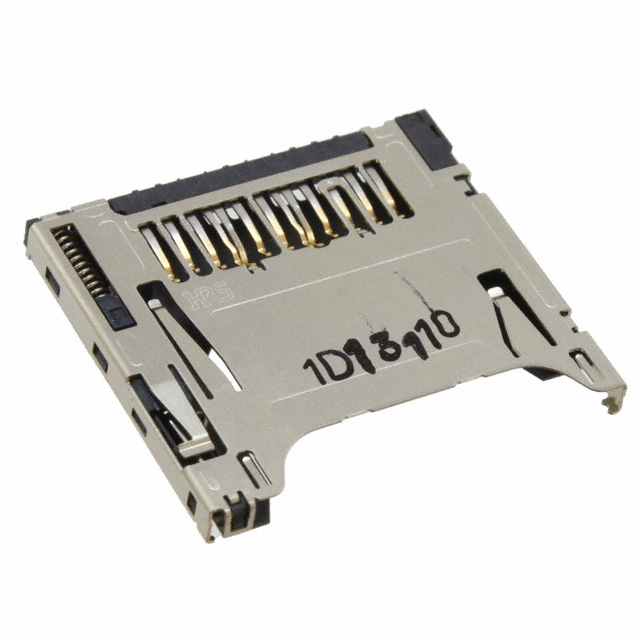

DM2B-DSFW-PEJ-S
ObsoleteHirose Electric USA, Inc.
CONN MINI SD CARD PUSH-PUSH R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DM2B-DSFW-PEJ-S
ObsoleteHirose Electric USA, Inc.
CONN MINI SD CARD PUSH-PUSH R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DM2B-DSFW-PEJ-S |
|---|---|
| Card Type | Secure Digital - miniSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Features | Switch |
| Height Above Board | 0.087 in |
| Height Above Board | 2.2 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Reverse - Bottom |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 13 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DM2B Series
13 (11 + 2) Position Card Connector Secure Digital - miniSD™ Surface Mount, Right Angle Gold
