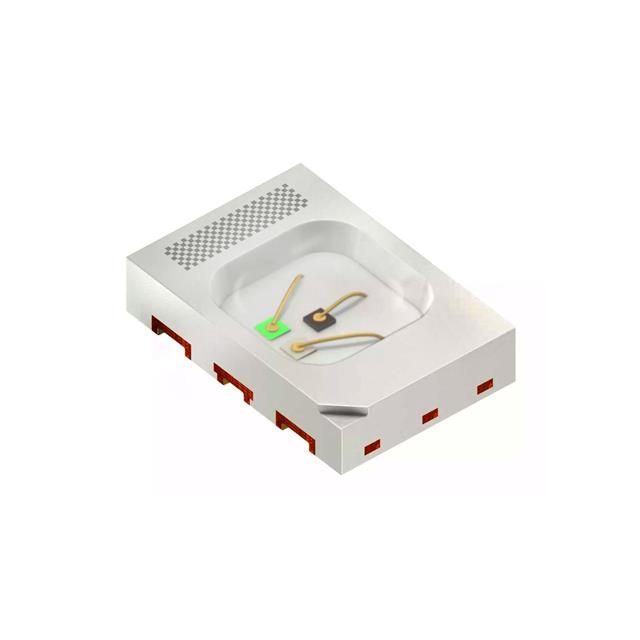

KRTBDWLM32.32-2T1V-JW+5A8A-J3+2R1T-5V-S

Active

ams-OSRAM USA INC.

LED RGB CLEAR 4SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED RGB CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Lens Style	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Size / Dimension [x]	Size / Dimension [y]	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Mounting Type	Package / Case	Lens Size [x]	Lens Size [y]	Color	Lens Transparency	Height (Max) [Max] [z]	Lens Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
ams-OSRAM USA INC. KRTBDWLM32.32-2T1V-JW+5A8A-J3+2R1T-5V-S	4-SMD	Oval with Flat Top	462 nm	533 nm	626 nm	3.3 mm	2.25 mm	Common Cathode	456 nm	526 nm	635 nm	Surface Mount	4-SMD No Lead	1.9 mm	1.85 mm	Blue Green Red	Clear	0.8 mm	Colorless	10 mA	10 mA	10 mA
ams-OSRAM USA INC. KRTBDWLM31.32-T4U6-JW+AAAB-J3R4S6-5V-S	SMD	Oval with Flat Top	462 nm	533 nm	626 nm	3.3 mm	2.25 mm	Common Anode	456 nm	526 nm	635 nm	Surface Mount	4-SMD No Lead	1.9 mm	1.85 mm	Blue Green Red	Clear	0.7 mm	Colorless	10 mA	10 mA	10 mA	222.5 mcd	557.5 mcd	1460 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 626nm Red, 533nm Green, 462nm Blue LED Indication - Discrete 1.9V Red, 2.45V Green, 2.75V Blue 4-SMD, No Lead
