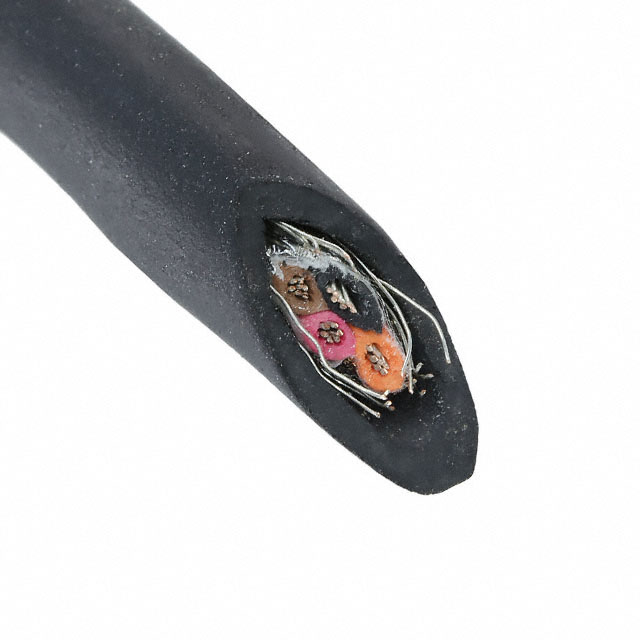

25524 BK005

Active

ALPHA WIRE

CABLE 4COND 18AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 18AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25524 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	10.85 mm
Jacket (Insulation) Diameter [diameter]	0.427 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	ISO 10993, UL Style 20952
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid
Voltage	600 V
Wire Gauge	18 AWG

Part	Ratings	Shield Material	Features	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Shield Coverage	Conductor Insulation	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Type	Cable Type	Length [x]	Length [x]	Conductor Material	Jacket Color	Length	Length
ALPHA WIRE 25524 BK005	ISO 10993 UL Style 20952	Copper Tinned Suprashield®	Biological Compatibility Drain Wire Rip Cord	18 AWG	-30 ░C	105 ░C	4	70 % 100 %	Poly-Vinyl Chloride (PVC)	600 V	1.6 mm	0.063 in	10.85 mm	0.427 in	16	30 AWG	Polyurethane (PU)	Braid Foil	Multi-Conductor	30.5 m	100 ft	Copper Tinned	Black
ALPHA WIRE 25524 BK199	ISO 10993 UL Style 20952	Copper Tinned Suprashield®	Biological Compatibility Drain Wire Rip Cord	18 AWG	-30 ░C	105 ░C	4	70 % 100 %	Poly-Vinyl Chloride (PVC)	600 V	1.6 mm	0.063 in	10.85 mm	0.427 in	16	30 AWG	Polyurethane (PU)	Braid Foil	Multi-Conductor			Copper Tinned	Black	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid 100.0' (30.5m)
