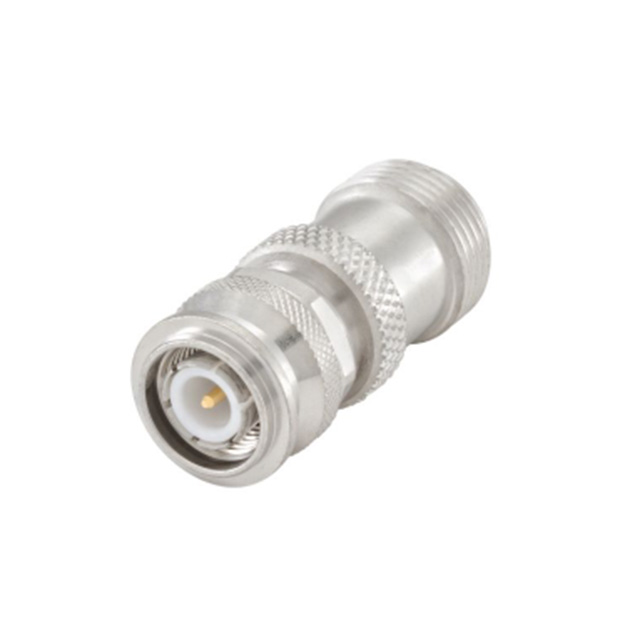

56S153-K00N5

Active

Rosenberger

CONN ADAPT TNC PLUG TO N JACK

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT TNC PLUG TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	56S153-K00N5

Adapter Series	N to TNC
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Frequency - Max [Max]	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Body Finish	Conversion Type	Mounting Type	Mating Cycles	Dielectric Material	Convert To (Adapter End)	Adapter Series	Body Material	Impedance	Center Contact Material	Adapter Type
Rosenberger 56S153-K00N5	10 GHz	Gold	155 °C	-55 °C	Straight	White Bronze	Between Series	Free Hanging (In-Line)	500	Polytetrafluoroethylene (PTFE)	Female Socket N Jack	N to TNC	Brass	50 Ohms	Beryllium Copper	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To N Jack, Female Socket 50 Ohms
