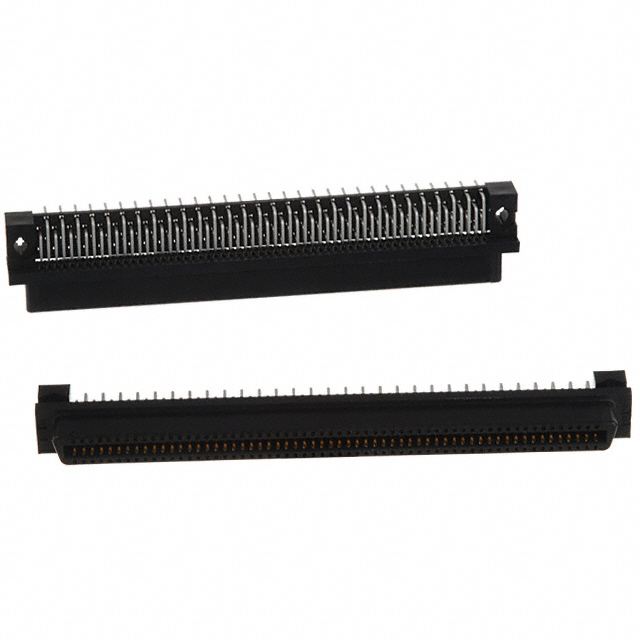

FX2-120S-1.27DS(71)

Active

Hirose Electric USA, Inc.

CONN BTB RCPT 120POS R/A SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN BTB RCPT 120POS R/A SOLDER

Technical Specifications

Parameters and characteristics for this part

...

Part	Contact Finish	Connector Type	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Connector Style	Type
Hirose Electric USA, Inc. FX2-120S-1.27SV(71)	Gold	Receptacle	120	2	7.87 µin	0.2 µm	Solder	Surface Mount	Outer Shroud Contacts
Hirose Electric USA, Inc. FX2-40S-1.27SVL(95)	Gold	Receptacle	40	2	7.87 µin	0.2 µm	Solder	Surface Mount	Outer Shroud Contacts
Hirose Electric USA, Inc. FX2-52P-1.27DSL(71)	Gold	Plug	52	2	7.87 µin	0.2 µm	Solder	Through Hole Right Angle	Center Strip Contacts	Board to Board
Hirose Electric USA, Inc. FX2-32S-1.27SVL(71)	Gold	Receptacle		2			Solder	Surface Mount	Outer Shroud Contacts
Hirose Electric USA, Inc. FX2-80S-1.27SVL(98)	Gold	Receptacle	80	2	7.87 µin	0.2 µm	Solder	Surface Mount	Outer Shroud Contacts
Hirose Electric USA, Inc. FX2-40P-1.27SV(71)	Gold	Plug	40	2	7.87 µin	0.2 µm	Solder	Surface Mount	Center Strip Contacts
Hirose Electric USA, Inc. FX2-80P-0.635SH(83)	Gold	Plug	80	2	7.87 µin	0.2 µm	Solder	Surface Mount Right Angle	Center Strip Contacts
Hirose Electric USA, Inc. FX2-120S-1.27DS(71)	Gold	Receptacle	120	2	7.87 µin	0.2 µm	Solder	Through Hole Right Angle	Outer Shroud Contacts	Board to Board
Hirose Electric USA, Inc. FX2-60P-0.635SH(71)	Gold	Plug	60	2	7.87 µin	0.2 µm	Solder	Surface Mount Right Angle	Center Strip Contacts
Hirose Electric USA, Inc. FX2-80P-1.27SV(71)	Gold	Plug	80	2	7.87 µin	0.2 µm	Solder	Surface Mount	Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Receptacle Connector Board to Board Through Hole, Right Angle Solder
