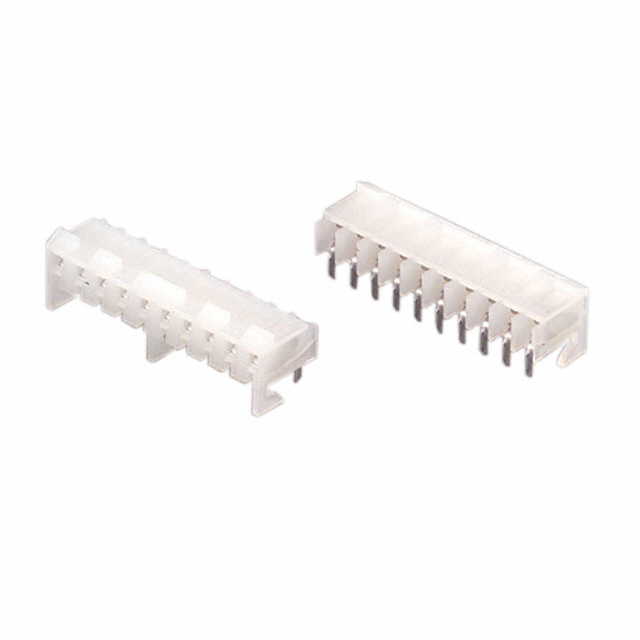

0009623101

Obsolete

Molex

CONN RCPT 10P 0.156 GOLD EDGE MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKK 2145 Series Datasheet, RA

0009623101

Obsolete

Molex

CONN RCPT 10P 0.156 GOLD EDGE MT

Deep-Dive with AI

DocumentsKK 2145 Series Datasheet, RA

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0009623101

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Locking Ramp
Features	Board Hooks
Insulation Color	White
Insulation Height	0.308 in
Insulation Height	7.82 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 V

000962 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Applications	Insulation Height	Insulation Height	Features	Termination	Contact Material	Insulation Material	Contact Shape	Current Rating (Amps)	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Contact Finish - Mating	Number of Positions	Style	Voltage Rating	Contact Type	Insulation Color	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Molex 0009623101	-40 °C	80 C	1	0.145 in	3.68 mm	UL94 V-2	Automotive General Purpose Medical Telecommunications	0.308 in	7.82 mm	Board Hooks	Solder	Brass	Nylon Polyamide (PA)	Square	4.5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold	10	Board to Board Cable	600 V	Female Socket	White	Board Edge Right Angle Through Hole
Molex 0009624039	-40 °C	105 ░C	1			UL94 V-2	Automotive General Purpose Medical Telecommunications			Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold		Board to Board Cable	600 V	Female Socket	White	Through Hole	0.12 in	3.05 mm	0.449 in	11.4 mm
Molex 0009626065	-40 °C	105 ░C	1			UL94 V-2	Automotive General Purpose Medical Telecommunications			Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	5 A	Locking Ramp	1.52 µm	60 µin	All	60 Áin	1.52 Ám	0.156 in	3.96 mm	Tin	Receptacle		6	Board to Board Cable	600 V	Female Socket	White	Through Hole	0.12 in	3.05 mm	0.449 in	11.4 mm
Molex 0009624028	-40 °C	105 ░C	1	0.16 in	4.06 mm	UL94 V-2	Automotive General Purpose Medical Telecommunications			Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	4.5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle Bottom Entry	Gold	2	Board to Board Cable	600 V	Female Socket	White	Through Hole			0.449 in	11.4 mm
Molex 0009624057	-40 °C	105 ░C	1	0.145 in	3.68 mm	UL94 V-2	Automotive General Purpose Medical Telecommunications	0.308 in	7.82 mm	Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold		Board to Board Cable	600 V	Female Socket	White	Board Edge Right Angle Through Hole
Molex 0009623153	-40 °C	80 C	1			UL94 V-2	Automotive General Purpose Medical Telecommunications			Board Hooks	Solder	Brass	Nylon Polyamide (PA)	Square	4.5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold	15	Board to Board Cable	600 V	Female Socket	White	Through Hole	0.12 in	3.05 mm	0.449 in	11.4 mm
Molex 0009626024	-40 °C	105 ░C	1	0.16 in	4.06 mm	UL94 V-2	Automotive General Purpose Medical Telecommunications			Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	4.5 A	Locking Ramp	1.52 µm	60 µin	All	60 Áin	1.52 Ám	0.156 in	3.96 mm	Tin	Receptacle Bottom Entry		2	Board to Board Cable	600 V	Female Socket	White	Through Hole			0.449 in	11.4 mm
Molex 0009624089	-40 °C	105 ░C	1			UL94 V-2	Automotive General Purpose Medical Telecommunications			Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold	8	Board to Board Cable	600 V	Female Socket	White	Through Hole	0.12 in	3.05 mm	0.449 in	11.4 mm
Molex 0009624117	-40 °C	105 ░C	1	0.145 in	3.68 mm	UL94 V-2	Automotive General Purpose Medical Telecommunications	0.308 in	7.82 mm	Board Hooks	Solder	Phosphor Bronze	Nylon Polyamide (PA)	Square	5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold	11	Board to Board Cable	600 V	Female Socket	White	Board Edge Right Angle Through Hole
Molex 0009623041	-40 °C	80 C	1	0.145 in	3.68 mm	UL94 V-2	Automotive General Purpose Medical Telecommunications	0.308 in	7.82 mm	Board Hooks	Solder	Brass	Nylon Polyamide (PA)	Square	4.5 A	Locking Ramp	2.54 µm	100 µin	All	15 µin	0.38 µm	0.156 in	3.96 mm	Tin	Receptacle	Gold	4	Board to Board Cable	600 V	Female Socket	White	Board Edge Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

000962 Series

10 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Gold

Documents

Technical documentation and resources

KK 2145 Series Datasheet, RA

Datasheet
