6100.4216

Active

SCHURTER Inc.

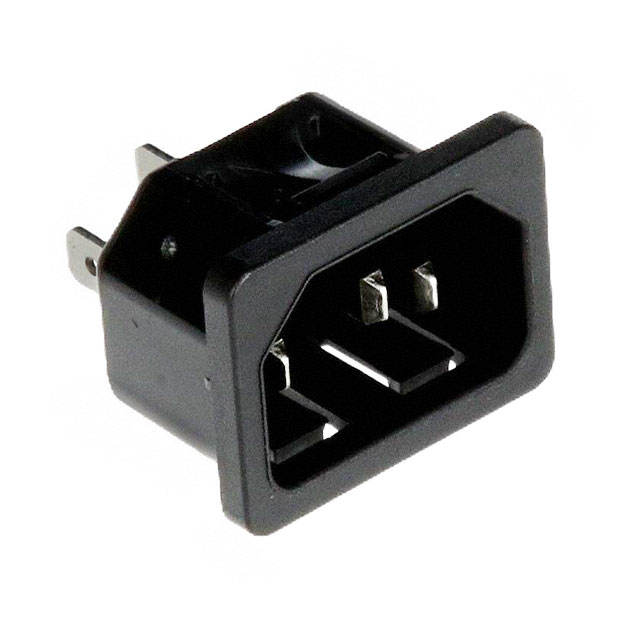

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); 6100-4

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); 6100-4

Technical Specifications

Parameters and characteristics for this part

Specification	6100.4216

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP30
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	20 mm
Panel Thickness	0.063 in
Panel Thickness	1.6 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Accomodates a Fuse	Panel Thickness	Panel Thickness	Filter Type	Voltage Rating - Appliance Inlet	Termination	Termination	Connector Type	Current Rating - Appliance Inlet	Approval Agency	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Material Flammability Rating	Connector Style
SCHURTER Inc. 6100.4216		0.063 in	1.6 mm	Unfiltered - Commercial	250 VAC	0.189 " 4.8 mm	Quick Connect	Male Blades Receptacle	10 A	CCC cULus ENEC	Panel Mount Snap-In	20 mm	27.5 mm	IP30	UL94 V-0	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
