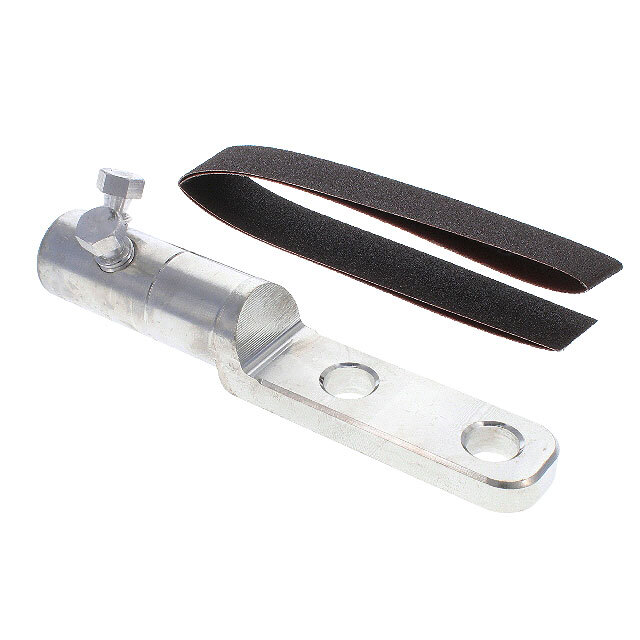

ASBT-2-4/0-SLIM
ActiveTE Energy & Utilities
PACK OF 6 ALUMINUM TERMINAL LUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASBT-2-4/0-SLIM |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Aluminum Alloy |
| Diameter - Ring ID [diameter] | 0.56 in |
| Diameter - Ring ID [diameter] | 14.22 mm |
| Insulation | Non-Insulated |
| Length - Overall [x] | 167.64 mm |
| Length - Overall [x] | 6.6 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.4 in |
| Tab Thickness | 10.16 mm |
| Terminal Style | Two Stud Holes |
| Terminal Type | Standard |
| Termination | Screw |
| Width - Outer Edges [x] | 27.94 mm |
| Width - Outer Edges [x] | 1.1 in |
| Wire Gauge [Max] | 2 |
| Wire Gauge [Min] | 4/0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ASBT-2 Series
Terminal Connector Rectangular Standard 4/0-2 AWG
