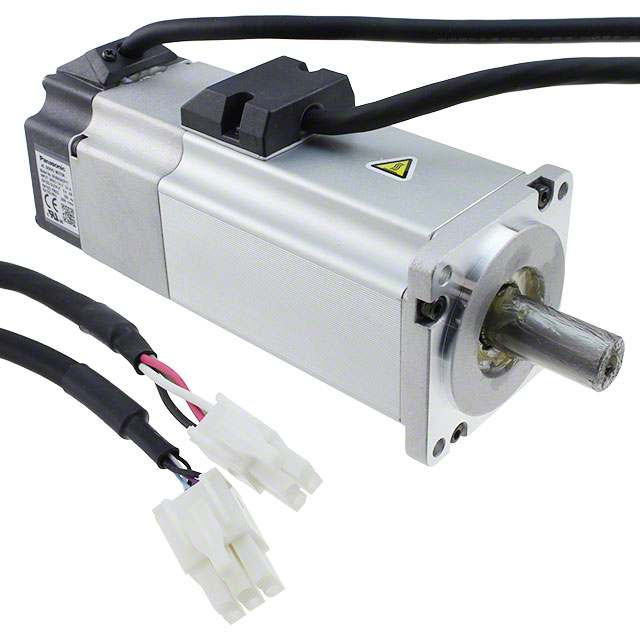

MUMA042P1T

LTB

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Search across all available documentation for this part.

LTB

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Technical Specifications

Parameters and characteristics for this part

Specification	MUMA042P1T

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	11 mm
Diameter - Shaft [diameter]	0.433 in
Encoder Type	Incremental
Features	Brake, Key
Function	Servomotor
Length - Shaft and Bearing [x]	30 mm
Length - Shaft and Bearing [x]	1.181 in
Mounting Hole Spacing	70 mm
Mounting Hole Spacing	2.756 in
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	400 W
RPM	3000 RPM
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	538.1 oz-in
Torque - Max Momentary (oz-in / mNm)	3800 mNm
Torque - Rated (oz-in / mNm)	1300 mNm
Torque - Rated (oz-in / mNm)	184.1 oz-in
Type	AC Motor
Voltage - Rated	200 VAC
Weight	1.9 kg
Weight	4.1 lbs

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Hole Spacing	Mounting Hole Spacing	Approval Agency	Features	Function	Encoder Type	Termination Style	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Weight	Weight	Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Power - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	RPM	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)
Panasonic Industrial Automation Sales MUMA042P1S	40 °C	0 °C	70 mm	2.756 in	CE CSA cULus TUV UL	Key	Servomotor	Incremental	Cable with Connector	11 mm	0.433 in	200 VAC	1.5 kg	3.3 lbs	AC Motor	30 mm	1.181 in	400 W	2.362 in	2.362 in	60 mm	60 mm	3000 RPM	1300 mNm	184.1 oz-in	538.1 oz-in	3800 mNm
Panasonic Industrial Automation Sales MUMA042P1T	40 °C	0 °C	70 mm	2.756 in	CE CSA cULus TUV UL	Brake Key	Servomotor	Incremental	Cable with Connector	11 mm	0.433 in	200 VAC	1.9 kg	4.1 lbs	AC Motor	30 mm	1.181 in	400 W	2.362 in	2.362 in	60 mm	60 mm	3000 RPM	1300 mNm	184.1 oz-in	538.1 oz-in	3800 mNm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Motor Servomotor 3000 RPM 400W Incremental 200VAC
