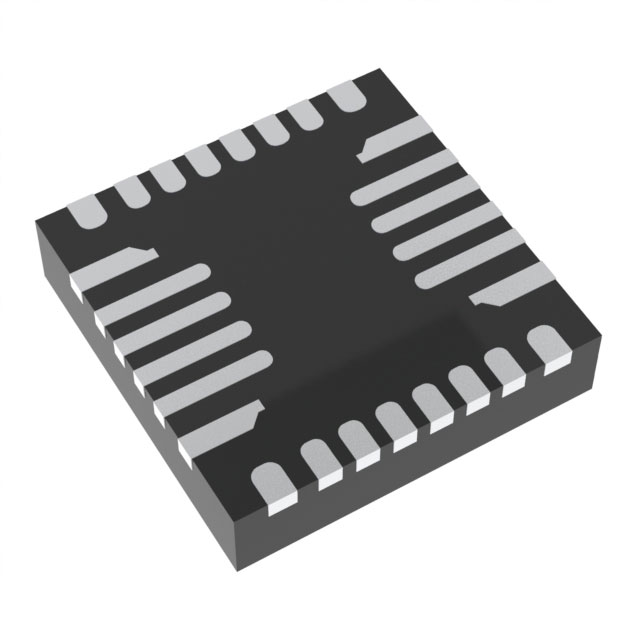

MP5496GR-0001-Z - 28-QFN

MP5496GR-0001-Z

Active
MONOLITHIC POWER SYSTEMS (MPS)

2.8V TO 5.5V, POWER MANAGEMENT I

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MP5496GR-0001-Z - 28-QFN

MP5496GR-0001-Z

Active
MONOLITHIC POWER SYSTEMS (MPS)

2.8V TO 5.5V, POWER MANAGEMENT I

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMP5496GR-0001-Z
Frequency - Switching1.5 MHz
Mounting TypeSurface Mount
Number of Outputs9
Operating Temperature [Max]125 ¯C
Operating Temperature [Min]-40 °C
Package / Case28-VFQFN
Supplier Device Package28-QFN (4x4)
TopologyStep-Down (Buck) Synchronous (4), Linear (LDO) (5)
Voltage/Current - Output 1True
Voltage/Current - Output 14.5 A
Voltage/Current - Output 1 [Max]2.1875 V
Voltage/Current - Output 1 [Min]0.6 V
Voltage/Current - Output 2Programmable
Voltage/Current - Output 22.5 A
Voltage/Current - Output 2 [Max]2.1875 V
Voltage/Current - Output 2 [Min]0.6 V
Voltage/Current - Output 34 A
Voltage/Current - Output 3Programmable
Voltage/Current - Output 3 [Max]2.1875 V
Voltage/Current - Output 3 [Min]0.6 V
w/LED DriverFalse
w/SequencerTrue
w/SupervisorFalse

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.04
10$ 3.63
25$ 3.43
100$ 2.97
250$ 2.82
500$ 2.53
1000$ 2.14
2500$ 2.03
Digi-Reel® 1$ 4.04
10$ 3.63
25$ 3.43
100$ 2.97
250$ 2.82
500$ 2.53
1000$ 2.14
2500$ 2.03
Tape & Reel (TR) 5000$ 1.95

Description

General part information

MP5496 Series

PMIC - Voltage Regulators - Linear Switching 9 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (5) 1.5MHz 28-QFN (4x4)

Documents

Technical documentation and resources

Datasheet

Datasheet
