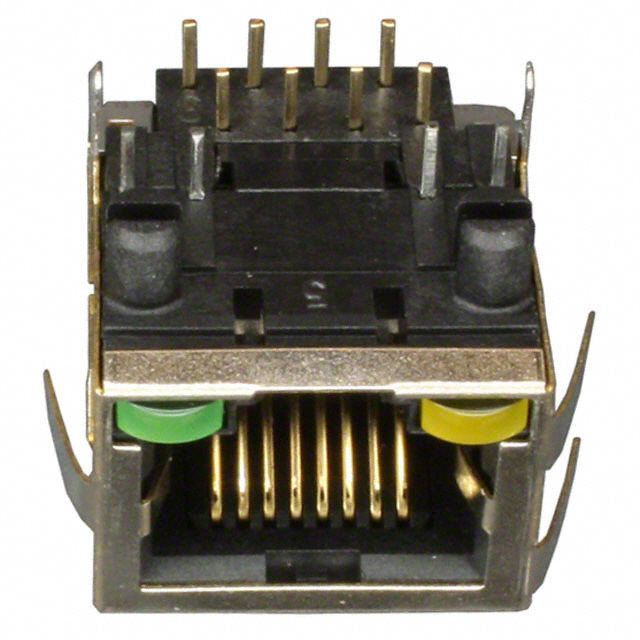

RJSBE5381C1

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJSBE5381C1

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJSBE5381C1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

RJSBE538 Series

Part	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Tab Direction	Shielding	Contact Finish	Number of Ports	Orientation	Number of Positions/Contacts	LED Color
Amphenol ICC (Commercial Products) RJSBE5385C1	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	1	90 °	8p8c (RJ45 Ethernet)	Green - Green
Amphenol ICC (Commercial Products) RJSBE5381C1	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	1	90 °	8p8c (RJ45 Ethernet)	Yellow - Green
Amphenol ICC (Commercial Products) RJSBE538MC4	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	4	90 °	8p8c (RJ45 Ethernet)	Red Yellow
Amphenol ICC (Commercial Products) RJSBE538HC4	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	4	90 °	8p8c (RJ45 Ethernet)	Green Yellow - Green
Amphenol ICC (Commercial Products) RJSBE5381C2	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	2	90 °	8p8c (RJ45 Ethernet)	Yellow - Green
Amphenol ICC (Commercial Products) RJSBE538FC4	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	4	90 °	8p8c (RJ45 Ethernet)	Green Yellow - Yellow
Amphenol ICC (Commercial Products) RJSBE538TC4	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	4	90 °	8p8c (RJ45 Ethernet)	Red - Red
Amphenol ICC (Commercial Products) RJSBE538DC2	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	2	90 °	8p8c (RJ45 Ethernet)	Green - Green Yellow
Amphenol ICC (Commercial Products) RJSBE5385C2	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	2	90 °	8p8c (RJ45 Ethernet)	Green - Green
Amphenol ICC (Commercial Products) RJSBE538NC2	Solder	Phosphor Bronze	50 µin	1.27 µm	Through Hole	Thermoplastic	85 °C	-55 °C	1	Jack	Down	Shielded EMI Finger	Gold	2	90 °	8p8c (RJ45 Ethernet)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.78
		10	$ 2.89
		25	$ 2.60
		50	$ 2.41
		100	$ 2.23
		250	$ 2.02
		500	$ 1.88
		1000	$ 1.76
		2500	$ 1.61

Description

General part information

RJSBE538 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
