ROX05SJ5R1

Active

TE Connectivity Passive Product

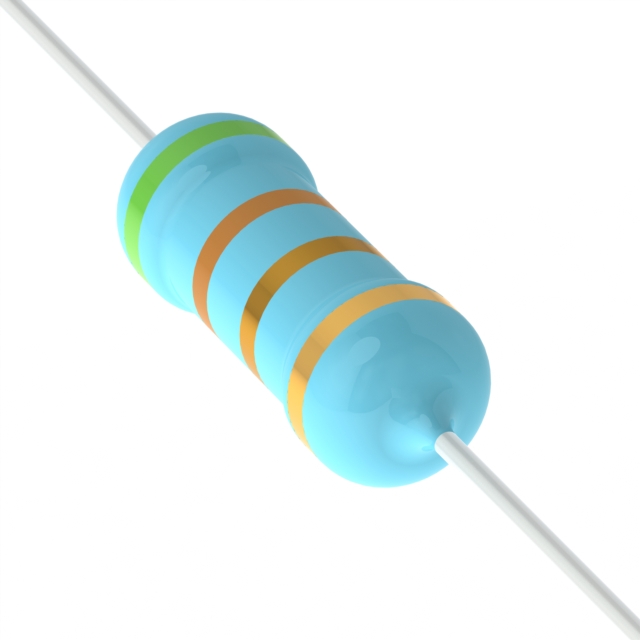

RES 5.1 OHM 5% 1/2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ROX05SJ5R1

Active

TE Connectivity Passive Product

RES 5.1 OHM 5% 1/2W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ROX05SJ5R1

Composition	Metal Oxide Film
Features	Flame Proof, Safety, Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	5.1 Ohms
Size / Dimension [diameter]	2.5 mm
Size / Dimension [diameter]	0.098 in
Size / Dimension [z]	0.295 "
Size / Dimension [z]	7.5 mm
Supplier Device Package	Axial
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

ROX05 Series

Part	Temperature Coefficient	Features	Tolerance	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Number of Terminations	Composition	Resistance	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)
TE Connectivity Passive Product ROX05SJ16R	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	16 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ200R	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	200 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ5R1	200 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	5.1 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ220R	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	220 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ1K0	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	1000 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ1R3	200 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	1.3 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ2K7	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	2.7 kOhms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ1R1	200 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	1.1 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ360R	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	360 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W
TE Connectivity Passive Product ROX05SJ56R	350 ppm/°C	Flame Proof Pulse Withstanding Safety	5 %	0.295 "	7.5 mm	2.5 mm	0.098 in	Axial	2	Metal Oxide Film	56 Ohms	Axial	130 °C	-55 °C	0.5 W	0.5 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.17
		10	$ 0.14
		25	$ 0.11
		50	$ 0.08
		100	$ 0.05
		250	$ 0.04
		500	$ 0.03
		1000	$ 0.02
	Tape & Box (TB)	5000	$ 0.02

Description

General part information

ROX05 Series

5.1 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
