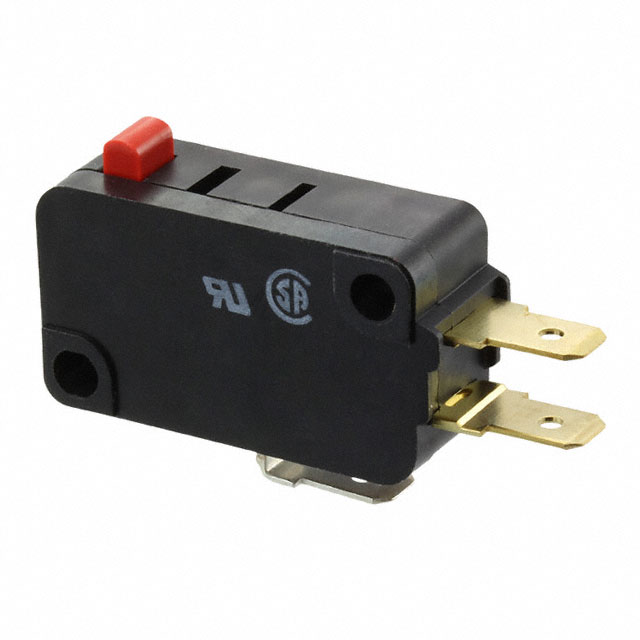

VX-01-1C22

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VX-01-1C22

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.012 "
Differential Travel	0.3 mm
Electrical Life	1000000 Cycles
Ingress Protection	IP40
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	0.04 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	3.059 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

VX-01 Series

Part	Circuit	Current Rating (Amps)	Operating Position	Operating Position	Mechanical Life	Operating Force	Ingress Protection	Switch Function	Pretravel	Pretravel	Electrical Life	Voltage Rating - AC	Release Force	Mounting Type	Differential Travel	Differential Travel	Overtravel	Overtravel	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Type	Termination Style
Omron Electronics Inc-EMC Div VX-01-1C23	SPDT	100 mA	0.579 in	14.7 mm	10000000 Cycles	50 gf	IP40	On-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	5.099 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect - 0.187" (4.7mm)	-25 °C	80 C	30 V	Round (Pin Plunger)
Omron Electronics Inc-EMC Div VX-01-1C22	SPDT	100 mA	0.579 in	14.7 mm	10000000 Cycles		IP40	On-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	3.059 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect - 0.187" (4.7mm)	-25 °C	80 C	30 V	Round (Pin Plunger)
Omron Electronics Inc-EMC Div VX-01-1A3	SPDT	100 mA	0.579 in	14.7 mm	10000000 Cycles	50 gf	IP40	On-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	5.099 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect Solder	-25 °C	80 C	30 V	Round (Pin Plunger)	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div VX-01-3A2	SPST-NO	100 mA	0.579 in	14.7 mm	10000000 Cycles		IP40	Off-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	3.059 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect Solder	-25 °C	80 C	30 V	Round (Pin Plunger)	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div VX-01-1A2	SPDT	100 mA	0.579 in	14.7 mm	10000000 Cycles		IP40	On-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	3.059 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect Solder	-25 °C	80 C	30 V	Round (Pin Plunger)	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div VX-01-3C22	SPST-NO	100 mA	0.579 in	14.7 mm	10000000 Cycles		IP40	Off-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	3.059 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect - 0.187" (4.7mm)	-25 °C	80 C	30 V	Round (Pin Plunger)
Omron Electronics Inc-EMC Div VX-01-3A3	SPST-NO	100 mA	0.579 in	14.7 mm	10000000 Cycles	50 gf	IP40	Off-Mom	0.047 in	1.2 mm	1000000 Cycles	125 V	5.099 gf	Chassis Mount	0.012 "	0.3 mm	0.04 in	1 mm	Quick Connect Solder	-25 °C	80 C	30 V	Round (Pin Plunger)	0.187 in 4.7 mm
