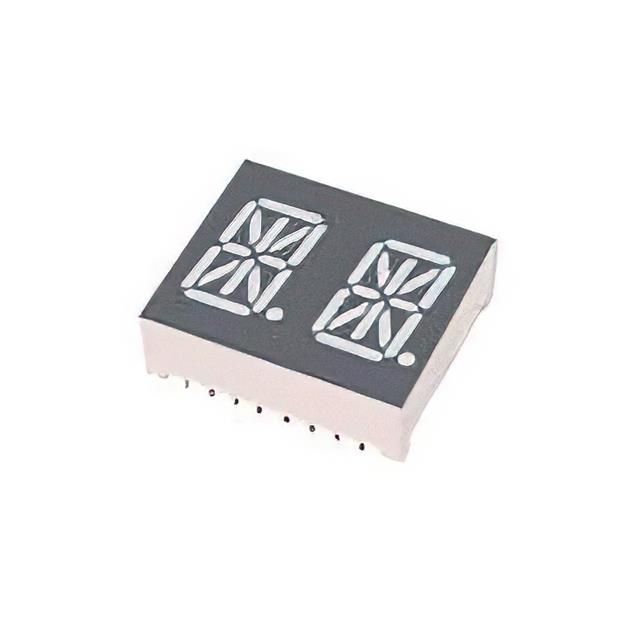

PDC54-11SURKWA
ActiveKingbright
14 SEG ALPHANUMERIC LED DISPLAY, HYPER RED, 13.8MM, ROHS COMPLIANT PACKAGE-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDC54-11SURKWA
ActiveKingbright
14 SEG ALPHANUMERIC LED DISPLAY, HYPER RED, 13.8MM, ROHS COMPLIANT PACKAGE-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDC54-11SURKWA |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 13.8 mm |
| Digit/Alpha Size | 0.54 in |
| Display Type | 14-Segment, Alphanumeric |
| Millicandela Rating | 68 mcd |
| Number of Characters | 2 |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 18-DIP |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 21.2 mm |
| Size / Dimension [x] | 0.835 in |
| Size / Dimension [y] | 0.992 " |
| Size / Dimension [y] | 25.2 mm |
| Size / Dimension [z] | 7.8 mm |
| Size / Dimension [z] | 0.307 " |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.17 | |
| 20 | $ 3.65 | |||
| 100 | $ 2.99 | |||
| 1000 | $ 2.31 | |||
Description
General part information
PDC54 Series
Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 2 Character Common Cathode 1.95V 20mA 0.835" H x 0.992" W x 0.307" D (21.20mm x 25.20mm x 7.80mm) 18-DIP (0.600", 15.24mm)
