SQPW102R2J

Active

TE Connectivity Passive Product

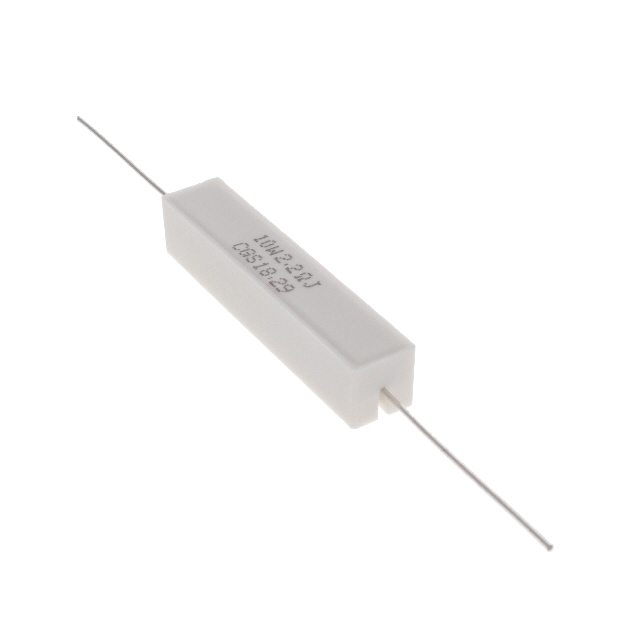

RES 2.2 OHM 5% 10W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

SQPW102R2J

Active

TE Connectivity Passive Product

RES 2.2 OHM 5% 10W AXIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQPW102R2J

Composition	Wirewound
Features	Safety, Flame Proof, Moisture Resistant
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	10 W
Resistance	2.2 Ohms
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	0.354 in
Size / Dimension [y]	9 mm
Size / Dimension [z]	48 mm
Size / Dimension [z]	1.89 "
Supplier Device Package	Axial
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

SQPW10 Series

Part	Resistance	Temperature Coefficient	Tolerance	Number of Terminations	Composition	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Supplier Device Package
TE Connectivity Passive Product SQPW102R2J	2.2 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW10R10J	0.1 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW103R3J	3.3 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW101R0J	1 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW1047RJ	47 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW10220RJ	220 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW108R2J		300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW107R5J	7.5 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Cement Coated Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW103R9J	3.9 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial
TE Connectivity Passive Product SQPW1022RJ	22 Ohms	300 ppm/°C	5 %	2	Wirewound	10 W	-55 °C	250 °C	Flame Proof Moisture Resistant Safety	48 mm	0.394 "	10 mm	0.354 in	1.89 "	9 mm	Axial	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.79
		10	$ 0.65
		240	$ 0.42
		1200	$ 0.28
		5040	$ 0.27
		10080	$ 0.26

Description

General part information

SQPW10 Series

2.2 Ohms ±5% 10W Through Hole Resistor Axial Flame Proof, Moisture Resistant, Safety Wirewound

Documents

Technical documentation and resources

No documents available
