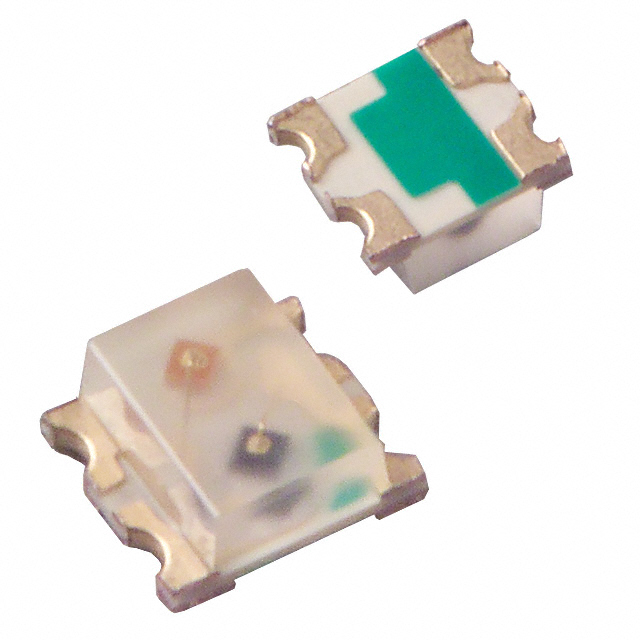

BRPY1211C-TR
ObsoleteStanley Electric Co
DUAL COLOR LED, RED/YELLOW, MILKY WHITE, 1.1MM,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BRPY1211C-TR
ObsoleteStanley Electric Co
DUAL COLOR LED, RED/YELLOW, MILKY WHITE, 1.1MM,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRPY1211C-TR |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | White |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 1.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 11.7 mcd, 11.7 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Viewing Angle | 139 °, 168 °, 150 °, 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V, 2.1 V |
| Wavelength - Dominant | 647 nm, 572 nm |
| Wavelength - Peak | 660 nm, 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| Digi-Reel® | 1 | $ 0.53 | ||
Description
General part information
BRPY1211 Series
Green, Red 572nm Green, 647nm Red LED Indication - Discrete 2.1V Green, 1.7V Red 0606 (1616 Metric)
