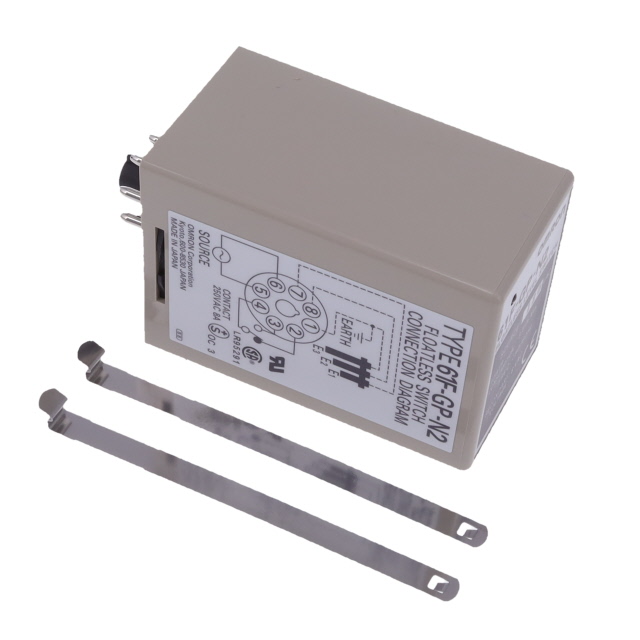

61F-GP-N2-AC120

Obsolete

Omron Electronics Inc-EMC Div

CNTRL LIQ LEV 120VAC SOCKETABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

61F-GP-N2-AC120

Obsolete

Omron Electronics Inc-EMC Div

CNTRL LIQ LEV 120VAC SOCKETABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	61F-GP-N2-AC120

Mounting Type	Socketable
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Sensitivity [Max]	4 kOhm
Sensitivity [Min]	0 Ohm
Termination Style	Plug In, 8 Pin (Octal)
Type	High/Low Level
Voltage - Supply	120 VAC
Weight	0.419 lb
Weight	190.06 g

61F Series

...

Part	Termination Style	Mounting Type	Sensitivity [Min]	Sensitivity [Max]	Contact Form	Voltage - Supply	Weight	Weight	Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Output Type	Features	Distance - Control To Sensor (Max) [Max] [custom]	Contact Rating @ Voltage	Distance - Control To Sensor (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Omron Electronics Inc-EMC Div 61F-IPD AC220	Plug In 15 Pin (Octal)	Socketable	0 Ohm	1.8 kOhm	SPDT (2 Form C)	220 VAC	1.1 lbs	499 g	High/Low Level	55 °C	-10 °C	Relay (2)	Alarm High/Low - Contact Level Indication	1 km	5 A 200 VAC
Omron Electronics Inc-EMC Div 61F-GP-N2-AC120	Plug In 8 Pin (Octal)	Socketable	0 Ohm	4 kOhm		120 VAC	0.419 lb	190.06 g	High/Low Level	55 °C	-10 °C
Omron Electronics Inc-EMC Div 61F-GP-N8H AC120	Plug In 8 Pin (Octal)	Socketable	15 kOhm	70 kOhm	SPDT (2 Form C)	120 VAC	0.342 lb	155.13 g	High/Low Level	55 °C	-10 °C				3 A 250 VAC	50 m
Omron Electronics Inc-EMC Div 61F-G3T AC110/220	Screw Terminal	Chassis Mount	0	5 kOhm	SPDT (2 Form C)		2.1 lb	952.5 g	High/Low Level	55 °C	-10 °C	Relay (3)	Alarm High/Low - Contact		5 A 220 VAC	600 m	220 VAC	110 VAC
Omron Electronics Inc-EMC Div 61F-G2-AC100/200	Screw Terminal	Chassis Mount	0 Ohm	4 kOhm	SPDT (1 Form C) SPDT (2 Form C)		1.7 lbs	771.1 g	High/Low Level	55 °C	-10 °C	Relay (2)	Alarm High - Contact	1 km	5 A 220 VAC		200 VAC	100 VAC
Omron Electronics Inc-EMC Div 61F-GP-N-AC120	Plug In 11 Pin (Octal)	Socketable	0 Ohm	4 kOhm	SPDT (2 Form C)	120 VAC	0.342 lb	155.13 g	High/Low Level	55 °C	-10 °C			1 km	3 A 250 VAC
Omron Electronics Inc-EMC Div 61F-GP-N8 230VAC	Plug In 8 Pin (Octal)	Socketable	0 Ohm	4 kOhm	SPDT (2 Form C)	230 VAC	0.342 lb	155.13 g	High/Low Level	55 °C	-10 °C			1 km	3 A 250 VAC
Omron Electronics Inc-EMC Div 61F-G2N AC110/220	Screw Terminal	DIN Rail	0 Ohm	4 kOhm	SPDT (1 Form C) SPDT (2 Form C)		0.904 lb	410.05 g	High/Low Level	55 °C	-10 °C	Relay (2)	Alarm High - Contact	1 km	3 A 200 VAC		220 VAC	110 VAC
Omron Electronics Inc-EMC Div 61F-G1NR AC110/220	Screw Terminal	DIN Rail	0 Ohm	1.1 kOhm	SPDT (2 Form C)		0.904 lb	410.05 g	High/Low Level	55 °C	-10 °C	Relay (2)	Alarm Low - Contact Idling Prevention Two Wire/Three Probe		3 A 200 VAC	800 m	220 VAC	110 VAC
Omron Electronics Inc-EMC Div 61F-GP-N8HY 110VAC	Plug In 8 Pin (Octal)	Socketable	15 kOhm	70 kOhm	SPDT (2 Form C)	110 VAC/DC	0.342 lb	155.13 g	High/Low Level	55 °C	-10 °C				3 A 250 VAC	50 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

61F Series

Liquid Level Controller High/Low Level 120VAC Socketable
