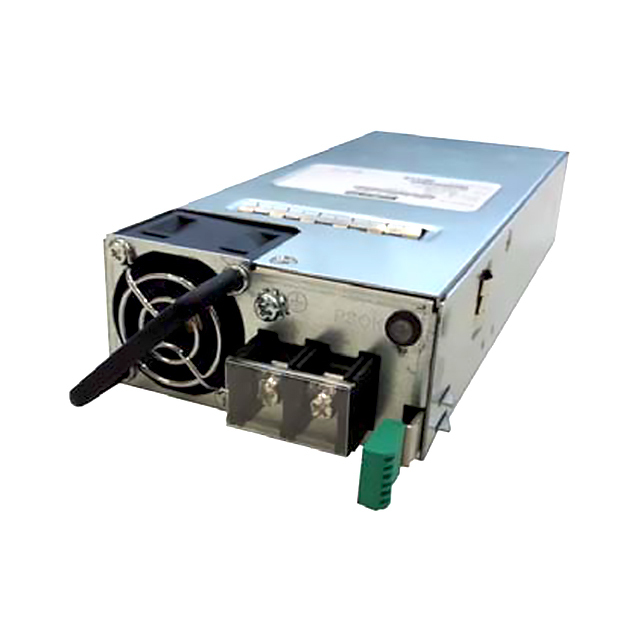

D1U86-D-1600-12-HB4DC
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER 12V 1600W
Deep-Dive with AI
Search across all available documentation for this part.
D1U86-D-1600-12-HB4DC
ActiveMurata Power Solutions Inc.
DC/DC CONVERTER 12V 1600W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D1U86-D-1600-12-HB4DC |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cCSAus, CE, CB |
| Current - Output (Max) [Max] | 133 A |
| Efficiency | 89 % |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1600 W |
| Size / Dimension [x] | 7.78 in |
| Size / Dimension [x] | 197.7 mm |
| Size / Dimension [y] | 3.29 in |
| Size / Dimension [y] | 83.5 mm |
| Size / Dimension [z] | 40.5 mm |
| Size / Dimension [z] | 1.59 " |
| Type | Front End |
| Voltage - Input (Max) [Max] | -72 V |
| Voltage - Input (Min) [Min] | -40 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
D1U86-D Series
Front End DC DC Converter 1 Output 12V 133A -72V Input
