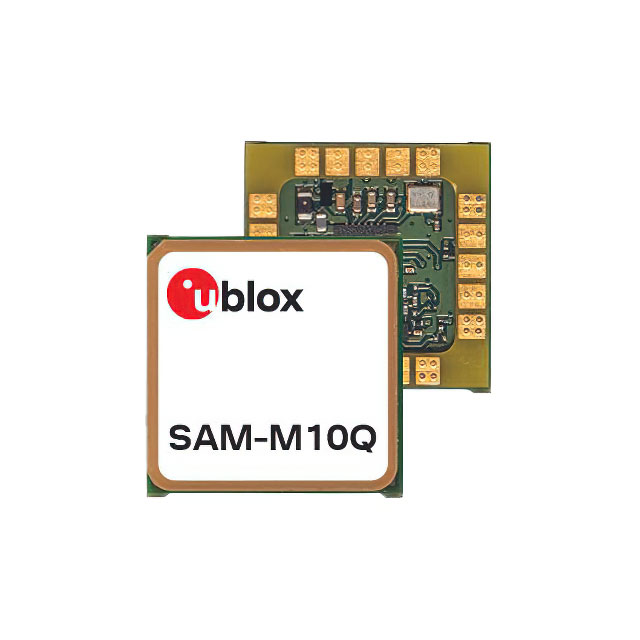

SAM-M10Q-00B
Activeu-blox
M10 GNSS LGA PATCH ANTENNA MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SAM-M10Q-00B
Activeu-blox
M10 GNSS LGA PATCH ANTENNA MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SAM-M10Q-00B |
|---|---|
| Antenna Connector | On-Board, Patch |
| Applications | GPS |
| Data Interface | I2C, UART |
| Data Rate (Max) | 400 kbps |
| Frequency | 1.602 GHz, 1.575 GHz |
| Modulation or Protocol | GPS, GLONASS, Galileo |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-SMD Module |
| Sensitivity | -165 dBm |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 31.50 | |
| 10 | $ 22.45 | |||
| 50 | $ 18.41 | |||
| 100 | $ 15.68 | |||
| Digi-Reel® | 1 | $ 31.50 | ||
| 10 | $ 22.45 | |||
| 50 | $ 18.41 | |||
| 100 | $ 15.68 | |||
| Tape & Reel (TR) | 250 | $ 14.74 | ||
Description
General part information
SAM-M10 Series
- RF Receiver Galileo, GLONASS, GPS 1.575GHz, 1.602GHz -165dBm 400kbps On-Board, Patch Module
