2908285

Active

Phoenix Contact

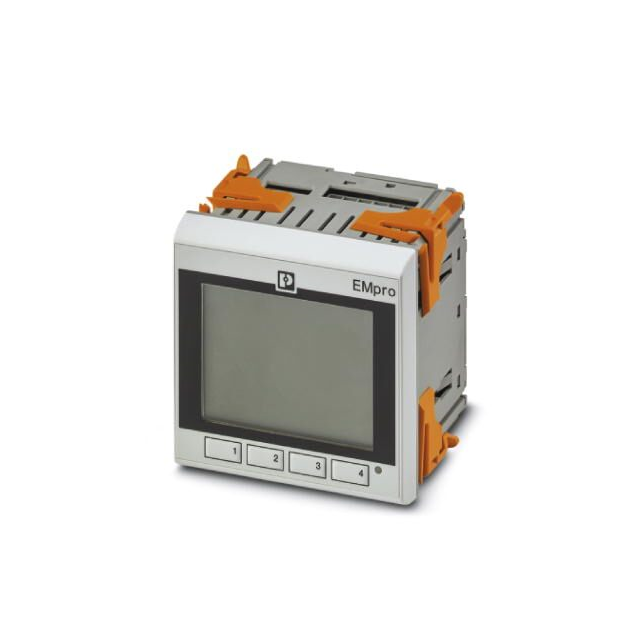

PANEL-MOUNT ENERGY METER WITH DI

Search across all available documentation for this part.

Active

Phoenix Contact

PANEL-MOUNT ENERGY METER WITH DI

Technical Specifications

Parameters and characteristics for this part

Specification	2908285

Display Type	LCD - Black Characters, Backlight
Ingress Protection	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	690 VAC, 5 A
Measuring Range [Min]	0 A, 35 VAC
Measuring Type	Current (3-Phase), Wattage, Voltage
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	400 VAC, 250 V
Voltage - Supply [Min]	100 VAC, 150 VDC

Part	Ingress Protection	Termination Style	Measuring Type	Display Type	Measuring Range [Min]	Measuring Range [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Type	Coil Resistance	Approval Agency	Contact Form	Switching Voltage	Release Time	Contact Material	Coil Current	Relay Type	Contact Rating (Current)	Coil Voltage	Mounting Type
Phoenix Contact 2908285	IP54 - Dust Protected Water Resistant	Screw Terminal	Current (3-Phase) Voltage Wattage	LCD - Black Characters Backlight	0 A 35 VAC	5 A 690 VAC	55 °C	-10 °C	Energy Monitor	100 VAC 150 VDC	250 V 400 VAC
Phoenix Contact 2908215		Spring Terminal										Diode Lighted Indicator Socket Included	50 °C	-20 C	10 ms	Non Latching	800 Ohms	CE UKCA UL	DPDT (2 Form C)	250 VAC 250 VDC	10 ms	Silver Nickel (AgNi)	30 mA	General Purpose	6 A	24 VDC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 516.07

General part information

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount
