Technical Specifications

Parameters and characteristics for this part

Specification	DCM4623ED2N17C8T70

Contents	Board(s)
Current - Output	25 A
Main Purpose	DC/DC, Step Down
Outputs and Type	1 Isolated Output
Power - Output	375 W
Regulator Topology	Buck
Voltage - Input [Max]	420 V
Voltage - Input [Min]	120 VDC
Voltage - Output	15 VDC

DCM4623 Series

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Min) [Min]	Standard Number	Applications	Mounting Type	Number of Outputs	Approval Agency	Utilized IC / Part	Power - Output	Main Purpose	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Outputs and Type	Outputs and Type	Board Type	Contents	Current - Output	Regulator Topology	Voltage - Input (Max) [Max]
Vicor Corporation DCM4623TD2H26F0T70	600 W	7.2 mm	0.28 "	47.9 mm	0.9 "	22.8 mm	1.89 in	Isolated Module	93.6 %	25 A	24 V	4.242 kV	Adjustable Output Remote Sense	125 °C	-40 °C	9-DIP Module	200 V	60950-1	ITE (Commercial)	Through Hole	1	CE cTUVus cURus
Vicor Corporation DCM4623ED2N13C8T00																							DCM4623xD2N13C8yzz	375 W	DC/DC Step Down	Board(s)	120 VDC	420 V	12 V	1 Isolated Output Isolated	1	Fully Populated	Board(s)	31.3 A	Buck
Vicor Corporation DCM4623TD2N13C8M70
Vicor Corporation DCM4623ED2N31C8T00																							DCM4623xD2N31C8yzz	375 W	DC/DC Step Down		120 VDC	420 V	28 V	1 Isolated Output			Board(s)	13.4 A	Buck
Vicor Corporation DCM4623ED2N17C8T70																								375 W	DC/DC Step Down		120 VDC	420 V	15 VDC	1 Isolated Output			Board(s)	25 A	Buck
Vicor Corporation DCM4623TD2K31E0T00	500 W	7.3 mm	0.29 "	47.9 mm	0.9 "	22.8 mm	1.89 in	Isolated Module	93.9 %	17.86 A	28 V	4.242 kV	OCP OTP OVP Remote On/Off SCP UVLO	125 °C	-40 °C	9-DIP Module	160 V		ITE (Commercial)	Through Hole	1
Vicor Corporation DCM4623ED2N26C8T70																							DCM4623xD2N26C8yzz	375 W	DC/DC Step Down	Board(s)	120 VDC	420 V	24 V	Isolated	1	Fully Populated		15.7 A	Buck
Vicor Corporation DCM4623TC8G16F0T00	600.3 W	7.3 mm	0.29 "	47.9 mm	0.9 "	22.8 mm	1.89 in	Isolated Module	93 %	43.5 A	13.8 V	4.242 kV	OCP OTP OVP SCP UVLO	125 °C	-40 °C	9-DIP Module	200 V		ITE (Commercial)	Through Hole	1															378 V
Vicor Corporation DCM4623TD2K53E0M70	500 W	7.2 mm	0.28 "	47.9 mm	0.9 "	22.8 mm	1.89 in	Isolated Module	93.6 %	10.42 A	48 V	4.242 kV	OCP OTP OVP SCP UVLO	125 °C	-55 °C	9-DIP Module	160 V		ITE (Commercial)	Through Hole	1
Vicor Corporation DCM4623ED2K06B5M70																							DCM4623xD2K06B5yzz	250 W	DC/DC Step Down	Board(s)	160 V	420 V	5 V	Isolated	1	Fully Populated		50 A	Buck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 986.74

Description

General part information

DCM4623 Series

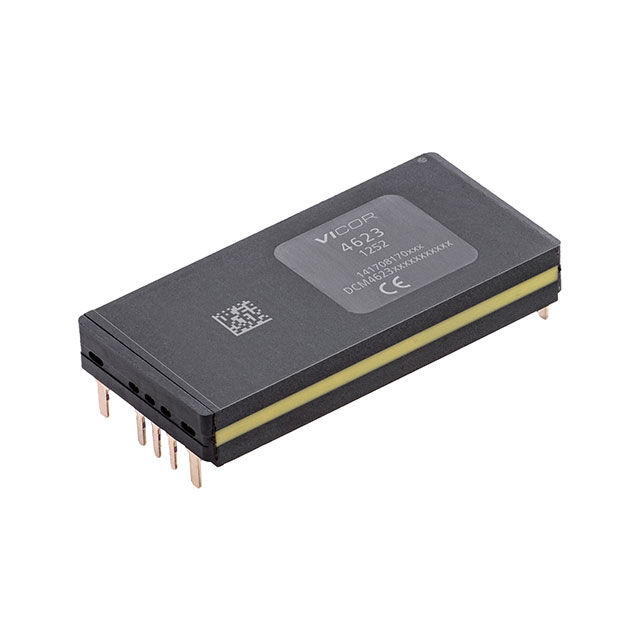

DCM4623xD2N17C8yzz - 1 Isolated Output DC/DC, Step Down Evaluation Board
