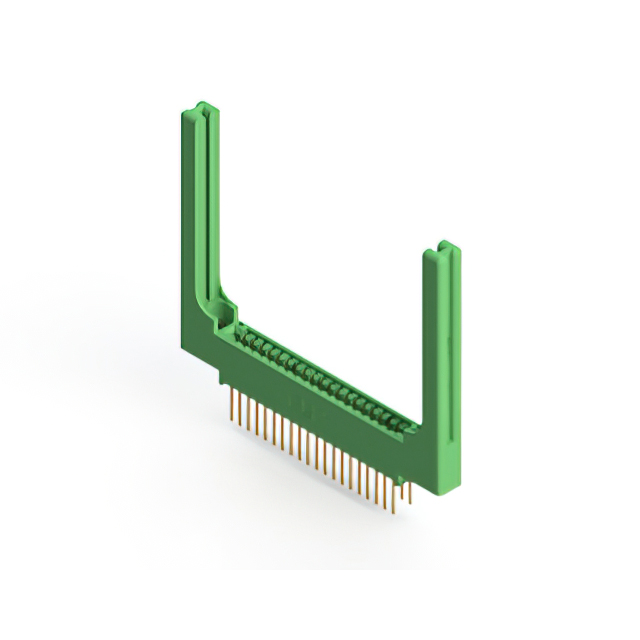

346-040-522-858
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-040-522-858
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-040-522-858 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-040 Series
...
| Part | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Termination Rows | Features | Contact Finish | Gender | Flange Feature | Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Read Out | Contact Type | Number of Positions | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Card Guides | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Green | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Non Specified - Dual Edge | Dual | Cantilever | 40 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Female | Side Mount Opening Unthreaded | Green | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | Non Specified - Single Edge | Single | Cantilever | 40 | 3.25 mm | 0.128 in | 40 | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Female | Green | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | Single | Cantilever | 40 | 40 | |||||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Card Guides | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Green | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | Single | Cantilever | 40 | 40 | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Female | Flush Mount Top Opening Unthreaded | Green | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | Non Specified - Single Edge | Single | Cantilever | 40 | 40 | 3.25 mm | 0.128 " | ||||||
EDAC Inc. | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Gold | Female | Flush Mount Top Opening Unthreaded | Green | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | Dual | Cantilever | 40 | 3.96 mm | 0.156 in | ||||
EDAC Inc. | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Card Guides | Gold | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | Dual | Cantilever | 40 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Female | Floating Bobbin Flush Mount | Green | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole Right Angle | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder Wire Wrap | Non Specified - Single Edge | Single | Cantilever | 40 | 40 | 2.95 mm | 0.116 in | ||||||
EDAC Inc. | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Card Guides | Gold | Female | 4-40 Threaded Insert Top Mount Opening | Green | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | Dual | Cantilever | 40 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | Gold | Female | Flush Mount Top Opening Unthreaded | Green | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | Through Hole | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Solder | Non Specified - Single Edge | Single | Cantilever | 40 | 40 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.29 | |
Description
General part information
346-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
