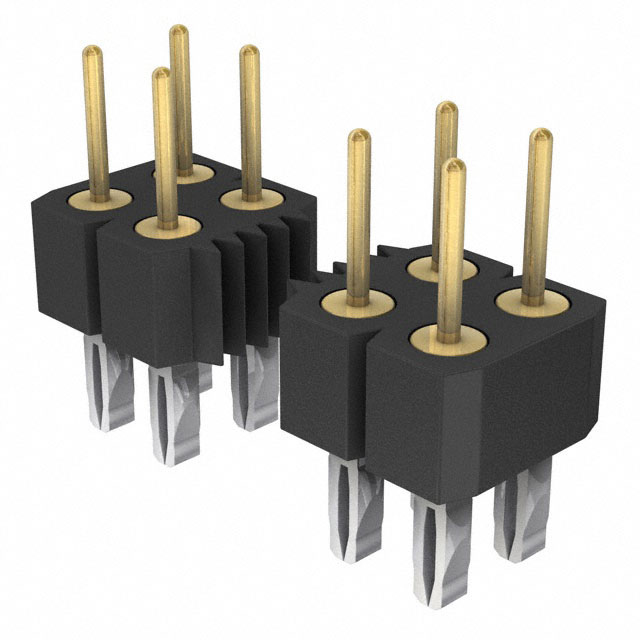

456-V3-256-00-014101

Active

PRECI-DIP SA

CONN HEADER VERT 56POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

456-V3-256-00-014101

Active

PRECI-DIP SA

CONN HEADER VERT 56POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	456-V3-256-00-014101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.378 in
Overall Contact Length	9.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder, Press-Fit
Voltage Rating	150 VDC

456-V3 Series

Part	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Shrouding	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Positions Loaded	Voltage Rating	Contact Material	Connector Type	Termination	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Contact Type	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Current Rating (Amps)	Insulation Material
PRECI-DIP SA 456-V3-220-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	20	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-206-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	6	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-256-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	56	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-254-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	54	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-264-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	64	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-232-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám		Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-272-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	72	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-226-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	26	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-234-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	34	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
PRECI-DIP SA 456-V3-236-00-014101	0.1 in	2.54 mm	0.11 in	2.79 mm	Unshrouded	2	2.54 mm	0.1 in	Tin	All	150 VDC	Bronze	Header	Press-Fit Solder	Push-Pull	Gold	UL94 V-0	Male Pin	0.378 in	9.6 mm	-55 °C	125 °C	Through Hole	Black	0.141 in	3.6 mm	29.5 Áin	0.75 Ám	36	Circular	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 13.52

Description

General part information

456-V3 Series

Connector Header Through Hole 56 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
