845-142-555-512
ActiveEDAC Inc.

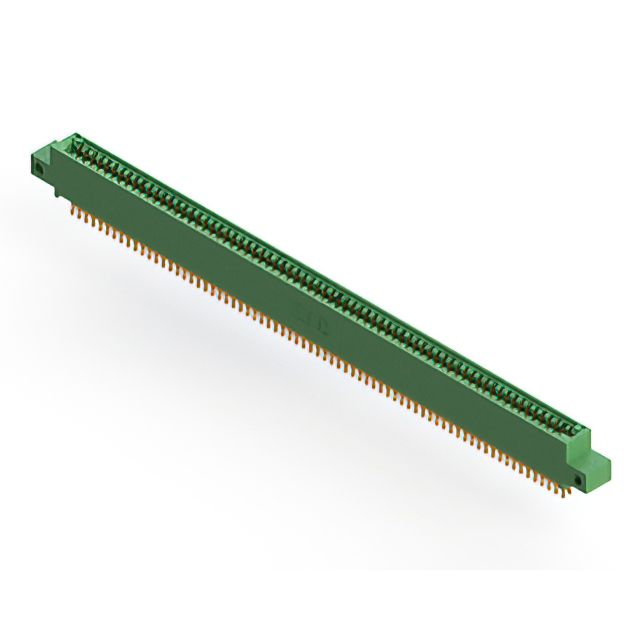

CARD EDGE CONNECTOR, 142 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-142-555-512
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 142 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-142-555-512 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 142 |
| Number of Positions/Bay/Row [custom] | 71 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-142 Series
...
| Part | Contact Material | Termination Rows | Mounting Type | Contact Type | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Number of Positions/Bay/Row [custom] | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 2 | Through Hole | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder Eyelet(s) | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Female | |||
EDAC Inc. | Copper Alloy | 2 | Through Hole | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Female | |||
EDAC Inc. | Copper Alloy | 2 | Through Hole | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Wire Wrap | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Female | |||
EDAC Inc. | Copper Alloy | 2 | Through Hole | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | |||
EDAC Inc. | Copper Alloy | 2 | Board Edge Straddle Mount | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | 4-40 Threaded Insert Top Mount Opening | Female | Card Extender | ||||
EDAC Inc. | Copper Alloy | 2 | Board Edge Straddle Mount | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | Side Mount Opening Unthreaded | Female | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | Copper Alloy | 2 | Through Hole Right Angle | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | M3 Threaded Insert Top Mount Opening | Female | |||||
EDAC Inc. | Copper Alloy | 2 | Through Hole | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder Eyelet(s) | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 2 | Board Edge Straddle Mount | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | Female | Card Extender | |||||
EDAC Inc. | Copper Alloy | 2 | Through Hole | Cantilever | Non Specified - Dual Edge | 125 °C | -40 °C | Green | Wire Wrap | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 142 | 2 | 71 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Gold | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 143.88 | |
Description
General part information
845-142 Series
142 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
