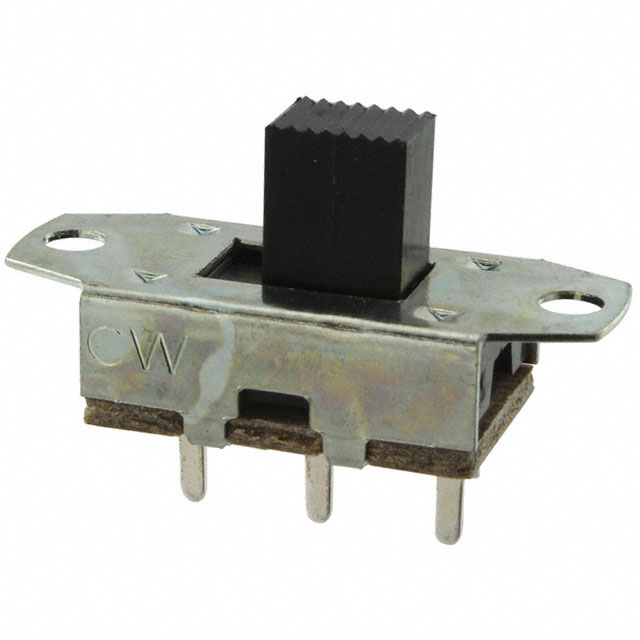

GF-324-0031

Active

CW Industries

SWITCH SLIDE SPDT 3A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Contact Material	Mechanical Life	Actuator Material	Current Rating (Amps)	Actuator Length [x]	Contact Finish	Contact Timing	Voltage Rating - AC	Switch Travel	Electrical Life	Actuator Type	Mounting Type
CW Industries GF-324-0031	PC Pin	125 VDC	104 °C	-10 °C	SPDT	On-On	Copper	10000 Steps	Nylon 6/6 Polyamide (PA66)	3 A 500 mA	8.74 mm	Silver	Not Specified	125 V	4.01 mm	6000 Cycles	Standard
CW Industries GF-324-0001	PC Pin	125 VDC	104 °C	-10 °C	SPDT	On-On	Copper	10000 Steps	Nylon 6/6 Polyamide (PA66)	3 A 500 mA	8.74 mm	Silver	Not Specified	125 V	4.01 mm	6000 Cycles	Standard
CW Industries GF-324-0032	Wire Wrap	125 VDC	104 °C	-10 °C	SPDT	On-On	Copper	10000 Steps	Nylon 6/6 Polyamide (PA66)	3 A 500 mA	8.74 mm	Silver	Not Specified	125 V	4.01 mm	6000 Cycles	Standard
CW Industries GF-324-0156	PC Pin	125 VDC	104 °C	-10 °C	SPDT	On-On	Copper	10000 Steps	Nylon 6/6 Polyamide (PA66)	3 A 500 mA	8.74 mm	Silver	Not Specified	125 V	4.01 mm	6000 Cycles	Standard	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch SPDT Panel Mount
