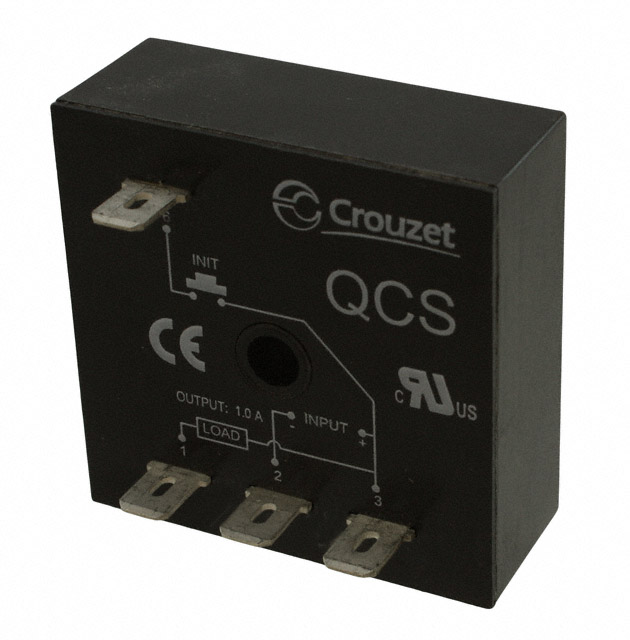

QCS20S220AL

Active

Crouzet

RELAY TIME DELAY 20 SEC CHAS MT

Search across all available documentation for this part.

Active

Crouzet

RELAY TIME DELAY 20 SEC CHAS MT

Technical Specifications

Parameters and characteristics for this part

Specification	QCS20S220AL

Delay Time	20 Sec
Delay Time	Fixed
Function	Off-Delay
Mounting Type	Chassis Mount
Relay Type	Solid State Relay
Termination Style	Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method	Fixed
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply	220 VAC

Part	Termination Style	Voltage - Supply	Timing Adjustment Method	Function	Timing Initiate Method	Relay Type	Mounting Type	Delay Time	Delay Time
Crouzet QCS20S220AL	Quick Connect - 0.250" (6.3mm)	220 VAC	Fixed	Off-Delay	Input Voltage Trigger Signal	Solid State Relay	Chassis Mount	20 Sec	Fixed
Crouzet QCS20S110A	Quick Connect - 0.250" (6.3mm)	110 VAC/DC	Fixed	Off-Delay	Input Voltage Trigger Signal	Solid State Relay	Chassis Mount	20 Sec	Fixed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 59.24

General part information

Off-Delay Time Delay Relay SPDT (1 Form C) Fixed, 20 Sec Delay Chassis Mount
