19431060546

Active

HARTING Technology Group

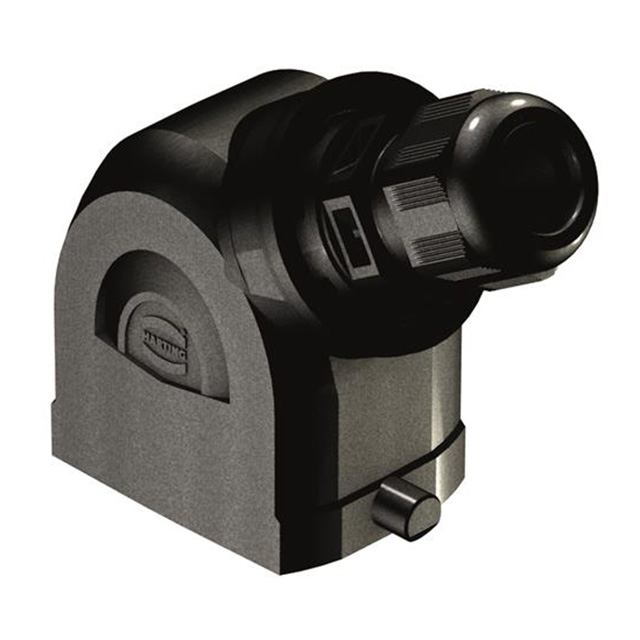

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN-ECO® B

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN-ECO® B

Technical Specifications

Parameters and characteristics for this part

Specification	19431060546

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Style	Side Entry
Thread Size	M25

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Ingress Protection	Size	Thread Size	Housing Material	Housing Color	Features	Style	Lock Location
HARTING Technology Group 19431060257	125 °C	-40 °C	84 mm	65 mm	3.465 "	88 mm	3.307 in	2.559 in	Base - Box Mount	IP66	6B	M32	Polyamide (PA) Nylon Glass Filled	Black	Cover	Side Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19431060447	125 °C	-40 °C							Hood	IP66	6B	M32	Polyamide (PA) Nylon Glass Filled	Black		Top Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19431060296	125 °C	-40 °C	84 mm	65 mm	3.465 "	88 mm	3.307 in	2.559 in	Base - Box Mount	IP66	6B	M25	Polyamide (PA) Nylon Glass Filled	Black		Side Entry Dual	Locking Clip (1) on Base Bottom
HARTING Technology Group 19431060255	125 °C	-40 °C	84 mm	65 mm	3.465 "	88 mm	3.307 in	2.559 in	Base - Box Mount	IP66	6B	M20	Polyamide (PA) Nylon Glass Filled	Black	Cover	Side Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19431060252	125 °C	-40 °C	84 mm	65 mm	3.465 "	88 mm	3.307 in	2.559 in	Base - Box Mount	IP66	6B	M32	Polyamide (PA) Nylon Glass Filled	Black		Side Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19431060546	125 °C	-40 °C							Hood	IP66	6B	M25	Polyamide (PA) Nylon Glass Filled	Black		Side Entry	Locking Clip (1) on Base Bottom
HARTING Technology Group 19431060547	125 °C	-40 °C							Hood	IP66	6B	M32	Polyamide (PA) Nylon Glass Filled	Black		Side Entry	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 6B IP66 - Dust Tight, Water Resistant
