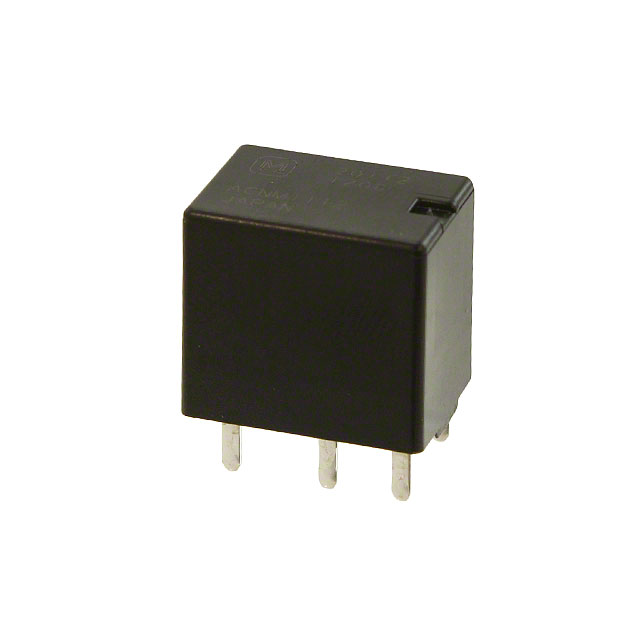

ACNM3112
ActivePanasonic Electric Works
MIDDLE LOAD RELAY FOR SMART J/B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACNM3112
ActivePanasonic Electric Works
MIDDLE LOAD RELAY FOR SMART J/B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACNM3112 |
|---|---|
| Coil Current | 53.3 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 30 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.34 | |
| 10 | $ 4.07 | |||
| 25 | $ 3.62 | |||
| 50 | $ 3.44 | |||
| 100 | $ 3.25 | |||
| 250 | $ 2.89 | |||
| 500 | $ 2.71 | |||
| 1000 | $ 2.53 | |||
Description
General part information
ACNM311 Series
MIDDLE LOAD RELAY FOR SMART J/B
