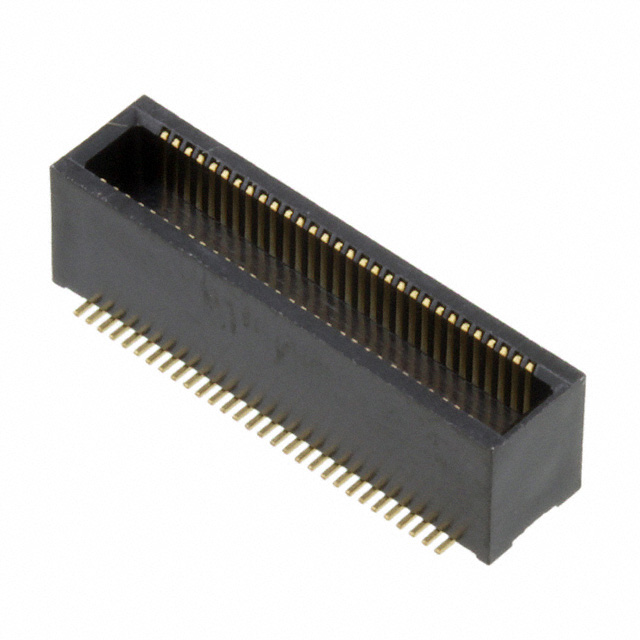

WR-60P-VF60-N1
ActiveJAE Electronics
CONN PLUG 60POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR-60P-VF60-N1 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board [z] | 5 mm |
| Height Above Board [z] | 0.197 in |
| Mated Stacking Heights | 6.5 mm, 9 mm, 6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 6.21 | |
| 10 | $ 5.64 | |||
| 25 | $ 5.34 | |||
| 50 | $ 5.22 | |||
| 100 | $ 4.97 | |||
| 250 | $ 4.35 | |||
| 500 | $ 4.22 | |||
| 1000 | $ 3.60 | |||
| 2500 | $ 3.35 | |||
Description
General part information
WR-60P-V Series
60 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
