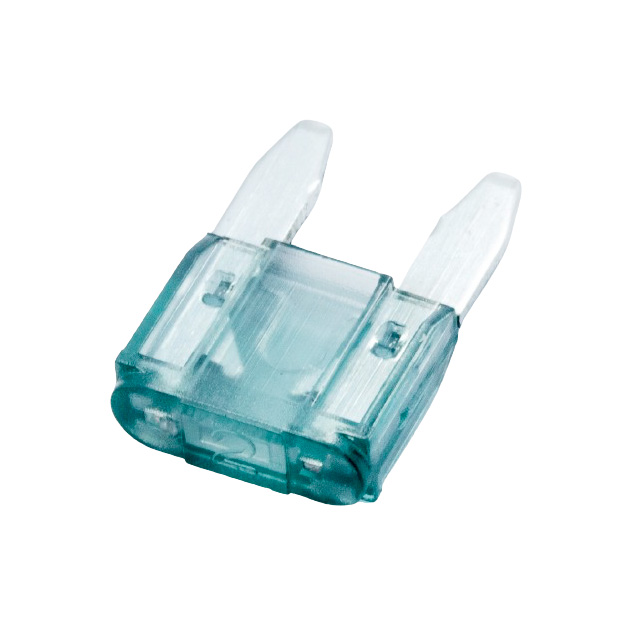

APM-2A

Active

OptiFuse

FUSE AUTOMOTIVE 2A 32VDC BLADE

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTOMOTIVE 2A 32VDC BLADE

Technical Specifications

Parameters and characteristics for this part

Specification	APM-2A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Gray
Current Rating (Amps)	2 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	0.362 in
Size / Dimension [z]	9.2 mm
Voltage Rating - DC	32 V

Part	Breaking Capacity @ Rated Voltage	Package / Case	Current Rating (Amps)	Fuse Type	Voltage Rating - DC	Response Time	Color	Approval Agency	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]
OptiFuse APM-2A	1 kA	Blade Miniature	2 A	Automotive	32 V	Fast Blow	Gray	ISO SAE	Requires Holder	0.362 in	0.15 "	3.8 mm	11 mm	0.433 in	9.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.38

General part information

2 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
