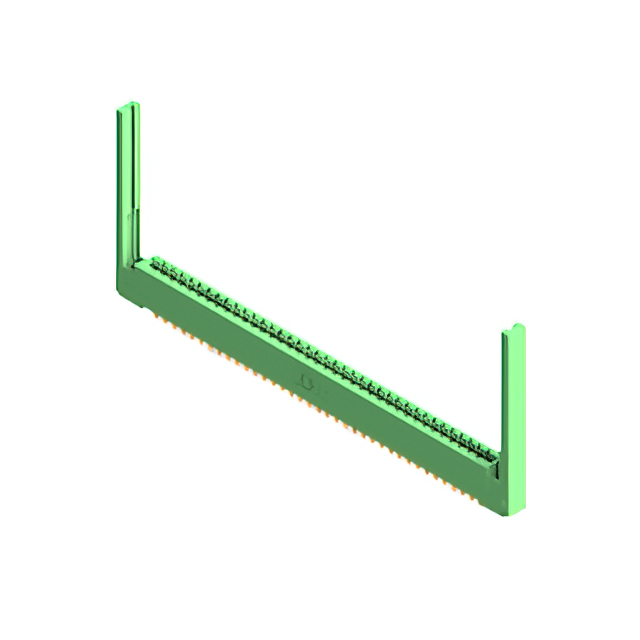

337-074-560-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-074-560-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-074-560-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-074 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Positions | Contact Material | Material - Insulation | Contact Finish | Color | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination | Mounting Type | Card Type | Pitch [x] | Pitch [x] | Termination Rows | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Wire Wrap | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Wire Wrap | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Wire Wrap | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Board Edge Straddle Mount | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Board Edge Straddle Mount | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Board Edge Straddle Mount | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | 3.96 mm | 0.156 in | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Wire Wrap | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual | Card Guides | ||
EDAC Inc. | -40 °C | 105 ░C | Female | 74 | Copper Alloy | Polyester Thermoplastic | Gold | Green | 37 | 37 | 37 | Cantilever | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Through Hole | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.98 | |
Description
General part information
337-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
