PTC03DAAN

Obsolete

Sullins Connector Solutions

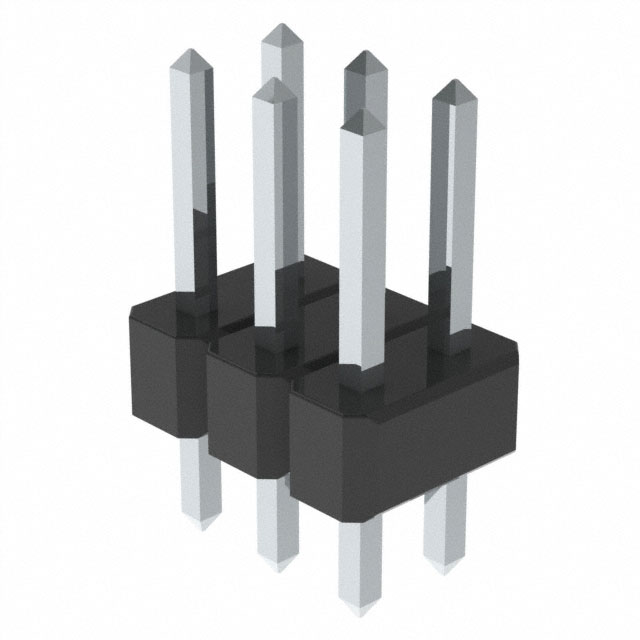

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC03DAAN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC03DAAN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC03 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Post	Fastening Type	Current Rating (Amps)	Mounting Type	Shrouding	Style	Contact Type	Insulation Color	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Number of Rows	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Material Flammability Rating	Insulation Height	Insulation Height	Contact Shape	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PTC03SFAN	2.54 µm	100 µin	0.318 "	8.08 mm	Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	1	Header	2.54 çm	100 çin	All	0.12 in	3.05 mm	Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square	0.538 "	13.67 mm
Sullins Connector Solutions PTC03DAAN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	2	Header	2.54 çm	100 çin	All	0.12 in	3.05 mm	Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square	0.45 "	11.43 mm	2.54 mm	0.1 in	6	5.84 mm
Sullins Connector Solutions PTC03DBEN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole Right Angle	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	2	Header	2.54 çm	100 çin	All			Polyester Thermoplastic	UL94 V-0	0.24 in	6.1 mm	Square			2.54 mm	0.1 in	6	5.84 mm	13.21 mm	0.52 "
Sullins Connector Solutions PTC03DAEN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	2	Header	2.54 çm	100 çin	All			Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square	0.85 in	21.59 mm	2.54 mm	0.1 in	6	5.84 mm	13.21 mm	0.52 "
Sullins Connector Solutions PTC03DBAN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole Right Angle	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	2	Header	2.54 çm	100 çin	All	0.12 in	3.05 mm	Polyester Thermoplastic	UL94 V-0	0.24 in	6.1 mm	Square			2.54 mm	0.1 in	6	5.84 mm
Sullins Connector Solutions PTC03SADN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	1	Header	2.54 çm	100 çin	All	0.42 in	10.67 mm	Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square	0.75 in	19.05 mm				5.84 mm
Sullins Connector Solutions PTC03DACN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	2	Header	2.54 çm	100 çin	All	0.32 in	8.13 mm	Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square		0.65 in	2.54 mm	0.1 in	6	5.84 mm			16.51 mm
Sullins Connector Solutions PTC03SAGN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	1	Header	2.54 çm	100 çin	All	0.72 "	18.29 mm	Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square	1.05 in	26.67 mm				5.84 mm
Sullins Connector Solutions PTC03SBAN	2.54 µm	100 µin	0.23 in		Tin	Push-Pull	3 A	Through Hole Right Angle	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	1	Header	2.54 çm	100 çin	All	0.12 in	3.05 mm	Polyester Thermoplastic	UL94 V-0	0.14 in	3.56 mm	Square						5.84 mm
Sullins Connector Solutions PTC03DFCN	2.54 µm	100 µin	0.318 "	8.08 mm	Tin	Push-Pull	3 A	Through Hole	Unshrouded	Board to Board Cable	Male Pin	Black	Copper Alloy	Solder	0.1 in	2.54 mm	2	Header	2.54 çm	100 çin	All	0.32 in	8.13 mm	Polyester Thermoplastic	UL94 V-0	0.1 in	2.54 mm	Square	0.738 "	18.75 mm	2.54 mm	0.1 in	6
