0192130008

Active

Molex

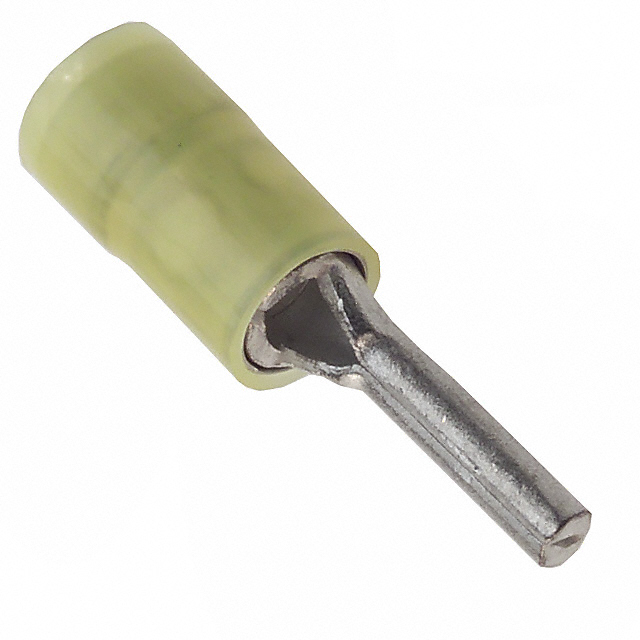

CONN WIRE PIN TERM 10-12AWG

Deep-Dive with AI

Search across all available documentation for this part.

0192130008

Active

Molex

CONN WIRE PIN TERM 10-12AWG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0192130008

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	5.72 mm
Insulation Diameter [diameter]	0.225 "
Length - Overall	28.7 mm
Length - Overall [x]	1.13 in
Length - Pin [x]	0.41 in
Length - Pin [x]	10.41 mm
Length - Termination	14.48 mm
Length - Termination	0.57 in
Material - Insulation	Nylon, Polyamide (PA)
Pin Diameter [diameter]	0.107 in
Pin Diameter [diameter]	2.72 mm
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

019213 Series

Part	Material - Insulation	Contact Material	Insulation	Pin Diameter [diameter]	Pin Diameter [diameter]	Length - Termination	Length - Termination	Termination	Contact Finish	Color	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Pin [x]	Length - Pin [x]	Length - Overall [x]	Length - Termination [x]	Length - Termination [x]
Molex 0192130008	Nylon Polyamide (PA)	Copper	Insulated	0.107 in	2.72 mm	14.48 mm	0.57 in	Crimp	Tin	Yellow	12 AWG	10 AWG	28.7 mm	1.13 in	5.72 mm	0.225 "	0.41 in	10.41 mm
Molex 0192130035	Nylon Polyamide (PA)	Copper	Insulated	0.08 in	2.03 mm			Crimp	Tin	Red	22 AWG	17.5 AWG		0.86 "	3.56 mm	0.14 in	0.37 in	9.4 mm	21.84 mm	9.91 mm	0.39 in
Molex 0192130034	Nylon Polyamide (PA)	Copper	Insulated	0.107 in	2.72 mm	13.97 mm	0.55 in	Crimp	Tin	Yellow	12 AWG	10 AWG	28.7 mm	1.13 in	5.72 mm	0.225 "	0.46 in	11.68 mm
Molex 0192130003	Nylon Polyamide (PA)	Copper	Insulated	0.078 in	1.98 mm	13.97 mm	0.55 in	Crimp	Tin	Red	22 AWG	17.5 AWG	26.67 mm	1.05 in	3.56 mm	0.14 in	0.41 in	10.41 mm
Molex 0192130005	Nylon Polyamide (PA)	Copper	Insulated	0.078 in	1.98 mm	13.97 mm	0.55 in	Crimp	Tin	Blue			26.67 mm	1.05 in			0.35 in	8.89 mm
Molex 0192130012	Nylon Polyamide (PA)	Copper	Insulated	0.078 in	1.98 mm	10.69 mm	0.421 in	Crimp	Tin	Blue				0.92 "			0.35 in	8.89 mm	23.37 mm
Molex 0192130001	Nylon Polyamide (PA)	Copper	Insulated	0.107 in	2.72 mm	17.3 mm	0.681 in	Crimp	Tin	Yellow	12 AWG	10 AWG		1.24 in	5.59 mm	0.22 "	0.35 in	8.89 mm	31.5 mm
Molex 0192130009	Nylon Polyamide (PA)	Copper	Insulated	0.08 in	2.03 mm			Crimp	Tin	Red	22 AWG	17.5 AWG		0.86 "	3.56 mm	0.14 in	0.37 in	9.4 mm	21.84 mm	9.91 mm	0.39 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.80
		10	$ 0.66
		100	$ 0.55
	Tape & Reel (TR)	500	$ 0.39
		1000	$ 0.36
		1500	$ 0.35
		2500	$ 0.34

Description

General part information

019213 Series

Wire Pin Terminal Connector 10-12 AWG Avikrimp Crimp
