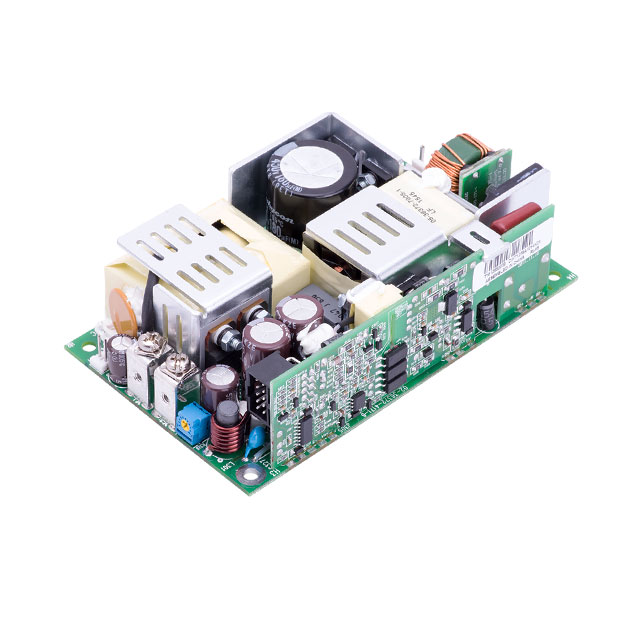

CINT1275A1214K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 180W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	CINT1275A1214K01

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	15 A
Efficiency	92 %
Features	Universal Input, DC Input Capable, Adjustable Output, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	180 W, 275 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	35.1 mm
Size / Dimension [z]	1.38 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Efficiency	Number of Outputs	Mounting Type	Type	Current - Output 1	Applications
SL POWER / Advanced Energy CINT1275A1214K01	180 W 275 W	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	12 V	90 VAC	264 VAC	Adjustable Output DC Input Capable Standby Output Universal Input	-10 °C	70 °C	CE	4000 V	92 %	1	Chassis Mount	Open Frame	15 A	ITE (Commercial)
SL POWER / Advanced Energy CINT1275A4814K01	180 W 275 W	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	48 V	90 VAC	264 VAC	Adjustable Output DC Input Capable Standby Output Universal Input	-10 °C	70 °C	CE	4000 V	92 %	1	Chassis Mount	Open Frame	3.75 A	ITE (Commercial)
SL POWER / Advanced Energy CINT1275A2414K01	180 W 275 W	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	24 V	90 VAC	264 VAC	Adjustable Output DC Input Capable Standby Output Universal Input	-10 °C	70 °C	CE	4000 V	92 %	1	Chassis Mount	Open Frame		ITE (Commercial)
SL POWER / Advanced Energy CINT1275A5614K01	180 W 275 W	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	56 V	90 VAC	264 VAC	Adjustable Output DC Input Capable Standby Output Universal Input	-10 °C	70 °C	CE	4000 V	92 %	1	Chassis Mount	Open Frame	3.2 A	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 170.37

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
