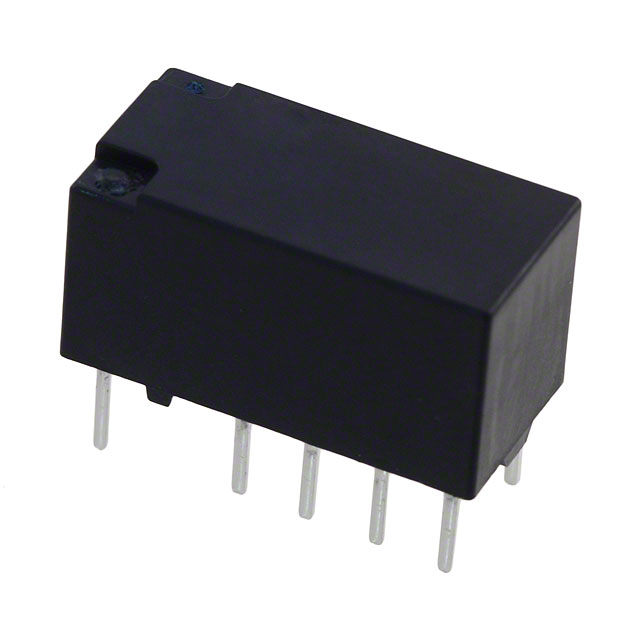

TX2-L2-5V

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards Chart Relay Technical Info +2

TX2-L2-5V

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 5V

Deep-Dive with AI

DocumentsStandards Chart Relay Technical Info +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TX2-L2-5V

Approval Agency	BSI, cURus
Coil Current	40 mA
Coil Resistance	125 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	5 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching [Max]	60 W
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	220 VDC
Termination Style	PC Pin

TX2-L Series

Part	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Approval Agency	Coil Voltage	Relay Type	Contact Material	Termination Style	Operate Time	Switching Voltage	Contact Form	Coil Resistance	Must Operate Voltage	Coil Current	Contact Rating (Current)	Mounting Type	Release Time	Load - Max Switching	Load - Max Switching [Max]
Panasonic Electric Works TX2-L2-5V-TH	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	5 VDC	General Purpose	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC 250 VAC	DPDT (2 Form C)	178 Ohms	3.75 VDC	28.1 mA	2 A	Through Hole	4 ms	440 W 500 VA
Panasonic Electric Works TX2-L2-5V	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	5 VDC	Telecom	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC	DPDT (2 Form C)	125 Ohms	3.75 VDC	40 mA	2 A	Through Hole	4 ms		60 W
Panasonic Electric Works TX2-LT-9V-1	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	9 VDC	Telecom	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC	DPDT (2 Form C)	405 Ohms	6.75 VDC	22.2 mA	1 A	Through Hole	4 ms	220 W
Panasonic Electric Works TX2-L2-3V-TH	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus		General Purpose	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC 250 VAC	DPDT (2 Form C)	64.3 Ohms	2.25 VDC	46.7 mA	2 A	Through Hole	4 ms	440 W 500 VA
Panasonic Electric Works TX2-LT-5V-TH	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	5 VDC	General Purpose	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC 250 VAC	DPDT (2 Form C)	178 Ohms	3.75 VDC	28.1 mA	2 A	Through Hole	4 ms	440 W 500 VA
Panasonic Electric Works TX2-LT-4.5V	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	4.5 VDC	Telecom	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC	DPDT (2 Form C)	101 Ohms	3.38 VDC	44.5 mA	2 A	Through Hole	4 ms		440 VA
Panasonic Electric Works TX2-L2-24V	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	24 VDC	Telecom	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC	DPDT (2 Form C)	2.88 kOhms	18 VDC	8.3 mA	2 A	Through Hole	4 ms		440 VA
Panasonic Electric Works TX2-L2-6V-TH	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus		General Purpose	Gold (Au) Silver (Ag)	PC Pin	4 ms	220 VDC 250 VAC	DPDT (2 Form C)	257 Ohms	4.5 VDC	23.3 mA	2 A	Through Hole	4 ms	440 W 500 VA
Panasonic Electric Works TX2-L2-5V-1	Sealed - Fully	85 °C	-40 °C	Latching Dual Coil	BSI cURus	5 VDC	Telecom	Gold (Au) Silver Palladium (AgPd)	PC Pin	4 ms	220 VDC	DPDT (2 Form C)	125 Ohms	3.75 VDC	40 mA	1 A	Through Hole	4 ms		220 VA
Panasonic Electric Works TX2-L-12V-1	Sealed - Fully	85 °C	-40 °C	Latching Single Coil	BSI cURus	12 VDC	Telecom	Gold (Au) Silver Palladium (AgPd)	PC Pin	4 ms	220 VDC	DPDT (2 Form C)	1440 Ohms	9 VDC	8.3 mA	1 A	Through Hole	4 ms		220 VA
