UM3865P
ActiveUnion Semiconductor International Limited
8V 2A LOAD SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM3865P
ActiveUnion Semiconductor International Limited
8V 2A LOAD SWITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM3865P |
|---|---|
| Current - Output (Max) [Max] | 1 A |
| Features | Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | P-Channel |

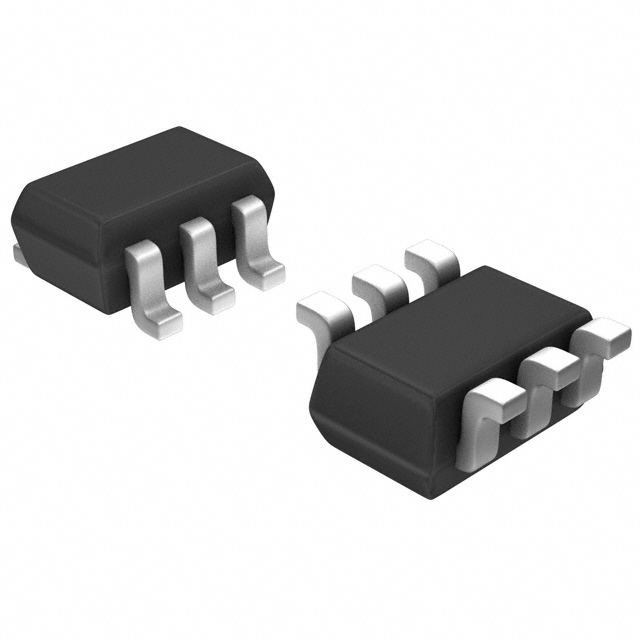

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 300 mOhm |
| Supplier Device Package | SOT-363 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 8 V |
| Voltage - Load [Min] | 1.8 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2 | $ 0.53 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.26 | |||
Description
General part information
UM3865 Series
Power Switch/Driver 1:1 P-Channel 1A SOT-363
