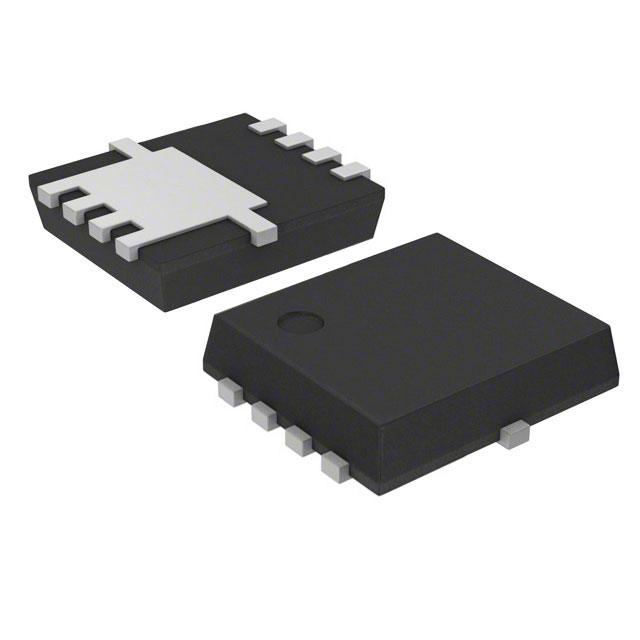

GT110N06D3
ActiveGoford Semiconductor
N60V, 35A,RD<11M@10V,VTH1.0V~2.4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GT110N06D3
ActiveGoford Semiconductor
N60V, 35A,RD<11M@10V,VTH1.0V~2.4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GT110N06D3 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 35 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 24 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1059 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerVDFN |
| Power Dissipation (Max) | 25 W |
| Rds On (Max) @ Id, Vgs | 11 mOhm |
| Supplier Device Package | 8-DFN (3.15x3.05) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.04 | |
| 10 | $ 0.65 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.30 | |||
| 2000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 1.04 | ||
| 10 | $ 0.65 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.30 | |||
| 2000 | $ 0.27 | |||
| Tape & Reel (TR) | 5000 | $ 0.24 | ||
| 10000 | $ 0.22 | |||
| 15000 | $ 0.22 | |||
| 25000 | $ 0.21 | |||
Description
General part information
GT110N06D3
N-Channel 60 V 35A (Tc) 25W (Tc) Surface Mount 8-DFN (3.15x3.05)
