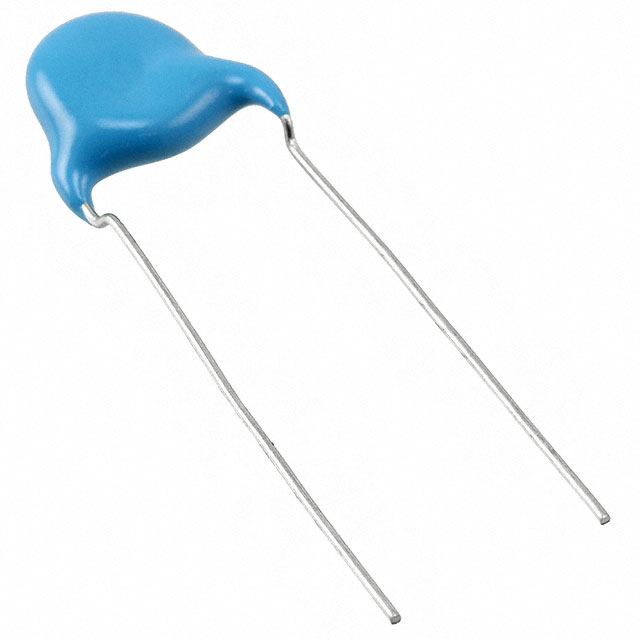

DE1E3KX332MB4BP01F

Obsolete

Murata Power Solutions Inc.

CAP CER 3300PF 300VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKH Type Spec Datasheet +1

DE1E3KX332MB4BP01F

Obsolete

Murata Power Solutions Inc.

CAP CER 3300PF 300VAC RADIAL

Deep-Dive with AI

DocumentsKH Type Spec Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE1E3KX332MB4BP01F

Applications	Safety
Capacitance	3300 pF
Features	Flame Retardant
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Temperature Coefficient	E
Tolerance	20 %
Voltage - Rated	250 VAC

DE1E3KX Series

Part	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Applications	Lead Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Package / Case	Voltage - Rated	Features	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DE1E3KX332MB4BP01F	X1 Y1	13 mm	0.512 "	E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	10 mm	0.394 in	3300 pF
Murata Power Solutions Inc. DE1E3KX102MA4BP01F	X1 Y1			E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	7 mm	0.276 in	0.001 µF	0.394 in	10 mm
Murata Power Solutions Inc. DE1E3KX222MB4BN01F	X1 Y1	12 mm	0.472 "	E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	9 mm	0.354 in	2200 pF
Murata Power Solutions Inc. DE1E3KX152MN4AP01F	X1 Y1	11 mm	0.433 in	E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	8 mm	0.315 "	1500 pF
Murata Power Solutions Inc. DE1E3KX472MN4AL01	X1 Y1			E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	12 mm	0.472 in	4700 pF	0.591 "	15 mm
Murata Power Solutions Inc. DE1E3KX152MA4BN01F	X1 Y1	11 mm	0.433 in	E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	8 mm	0.315 "	1500 pF
Murata Power Solutions Inc. DE1E3KX102MJ4BN01F
Murata Power Solutions Inc. DE1E3KX102MN5AA01	X1 Y1	12 mm	0.472 "	E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	8 mm	0.315 "	0.001 µF
Murata Power Solutions Inc. DE1E3KX332MN5AA01	X1 Y1			E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	12 mm	0.472 in	3300 pF	0.63 in	16 mm
Murata Power Solutions Inc. DE1E3KX102MN4AN01F	X1 Y1			E	Safety	Straight	125 °C	-40 °C	Through Hole	20 %	Disc Radial	250 VAC	Flame Retardant	0.394 in	10 mm	7 mm	0.276 in	0.001 µF	0.394 in	10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DE1E3KX Series

3300 pF ±20% 250VAC Ceramic Capacitor E Radial, Disc

Documents

Technical documentation and resources

KH Type Spec

Datasheet

Safety Cert, High Voltage Ceramic Catalog

Datasheet
