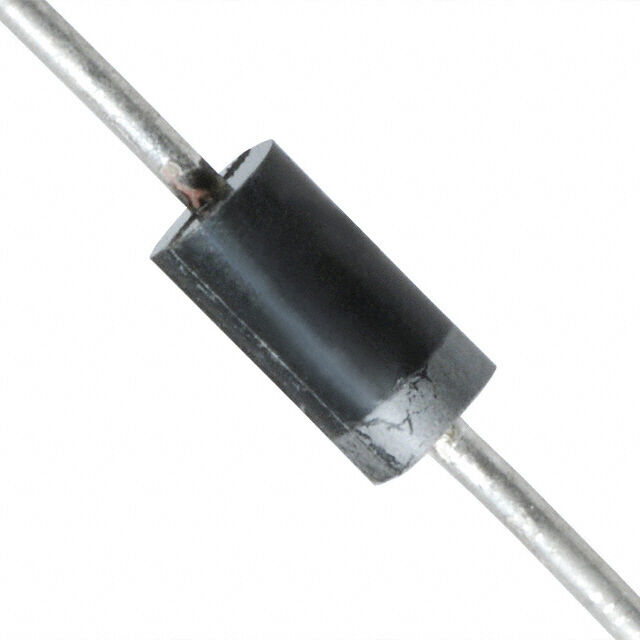

1N4003-N-2-3-AP

Obsolete

Micro Commercial Components

DIODE STANDARD 200V 1A DO41

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

DIODE STANDARD 200V 1A DO41

Technical Specifications

Parameters and characteristics for this part

Specification	1N4003-N-2-3-AP

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-41
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Technology	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Mounting Type	Package / Case	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)
Micro Commercial Components 1N4003-N-2-3-AP	Standard	5 µA	1 V	DO-41	Through Hole	Axial DO-204AL DO-41	Standard Recovery >500ns	200 mA	200 V	1 A
Micro Commercial Components 1N4003-N-0-2-BP	Standard	5 µA	1 V	DO-41	Through Hole	Axial DO-204AL DO-41	Standard Recovery >500ns	200 mA	200 V	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 200 V 1A Through Hole DO-41
