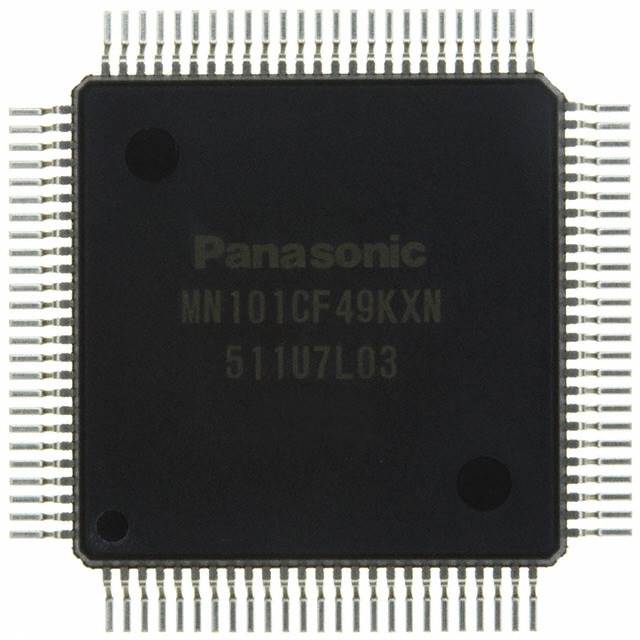

MN101CF49KXN

Obsolete

Panasonic Industrial Automation Sales

IC MCU 8BIT 224KB FLASH 100QFP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC MCU 8BIT 224KB FLASH 100QFP

Technical Specifications

Parameters and characteristics for this part

Part	Connectivity	Program Memory Type	Speed	Core Size	Supplier Device Package	Number of I/O	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Converters	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	RAM Size	Oscillator Type	Package / Case	Core Processor	Data Converters
Panasonic Industrial Automation Sales MN101CF49KXN	I2C UART/USART	FLASH	20 MHz	8-Bit	100-QFP (18x18)	73	224 KB	85 °C	-40 °C	Surface Mount	A/D 8x10b D/A 4x8b	DMA PWM WDT	5.5 V	2 V	10 K	Internal	100-BQFP	MN101C
Panasonic Industrial Automation Sales MN101CF77GXN	I2C UART/USART	FLASH	20 MHz	8-Bit		53	128 KB	85 °C	-40 °C	Surface Mount	A/D 7x10b D/A 2x8b	DMA PWM WDT	3.6 V	1.8 V	6 K	Internal	64-LQFP	MN101C
Panasonic Industrial Automation Sales MN101CF78AXN	I2C UART/USART	FLASH	8 MHz	8-Bit	48-TQFP (7x7)	39 I/O	32 KB	85 °C	-40 °C	Surface Mount		LCD PWM WDT	3.6 V	1.8 V	1.5 K	Internal	48-TQFP	MN101C	7 10 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MN101C AM1 Microcontroller IC 8-Bit 20MHz 224KB (224K x 8) FLASH 100-QFP (18x18)
