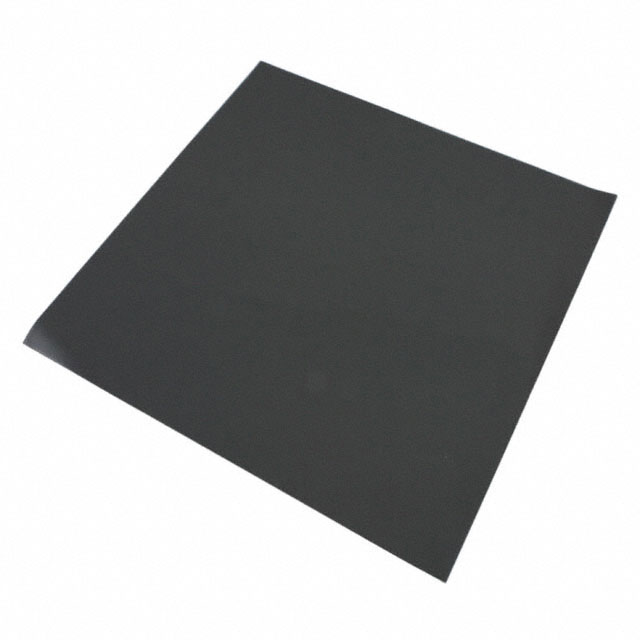

A15896-02
Laird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A15896-02
Laird Technologies - Thermal Materials
THERM PAD 228.6MMX228.6MM GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A15896-02 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Color | Gray |
| Material | Silicone |
| Outline [x] | 228.6 mm |
| Outline [y] | 228.6 mm |
| Shape | Square |
| Shelf Life | 24 Months |
| Thermal Conductivity | 5 W/m-K |
| Thickness | 0.508 mm |
| Thickness | 0.02 in |
| Type | Gap Filler Pad, Sheet |
A15896 Series
| Part | Shape | Shelf Life | Thermal Conductivity | Thickness | Thickness | Type | Outline [x] | Outline [y] | Material | Color | Shelf Life Start | Adhesive | Thickness [z] | Thickness [z] | Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.13 in | 3.3 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.04 in | 1.016 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.02 in | 0.508 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Tacky - Both Sides | ||||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.17 in | 4.32 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | 2.79 mm | 0.11 in | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 4.83 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | 0.19 in | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.07 in | 1.778 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.16 in | 4.06 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.05 in | 50 mils | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides | |||
Laird Technologies - Thermal Materials | Square | 24 Months | 5 W/m-K | 0.03 in | 0.762 mm | Gap Filler Pad Sheet | 228.6 mm | 228.6 mm | Silicone | Gray | Date of Shipment | Tacky - Both Sides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 81.74 | |
| 10 | $ 72.51 | |||
| 25 | $ 69.13 | |||
| 50 | $ 66.67 | |||
| 100 | $ 64.30 | |||
Description
General part information
A15896 Series
Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides
