28590.6
ActiveConta-Clip, Inc.

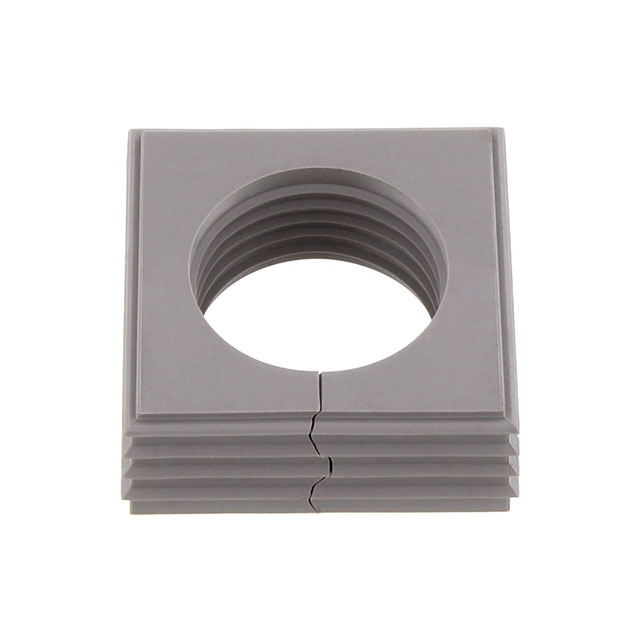

KDS LARGE SEALING SLEEVE 29MM
Deep-Dive with AI
Search across all available documentation for this part.
28590.6
ActiveConta-Clip, Inc.
KDS LARGE SEALING SLEEVE 29MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28590.6 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 29 mm |
| Diameter - Inside [Max] [diameter] | 1.142 " |
| Diameter - Inside [Min] [diameter] | 28 mm |
| Diameter - Inside [Min] [diameter] | 1.102 " |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 V-0 |
| Panel Cutout Dimensions | 42.8 mm |
| Panel Cutout Dimensions [custom] | 1.685 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.03 | |
| 5 | $ 2.88 | |||
| 10 | $ 2.80 | |||
| 30 | $ 2.73 | |||
| 50 | $ 2.65 | |||
Description
General part information
28590 Series
Square - 1.685" (42.80mm) Frame Grommet, Split 1.102" ~ 1.142" (28.00mm ~ 29.00mm) Gray
Documents
Technical documentation and resources
No documents available
