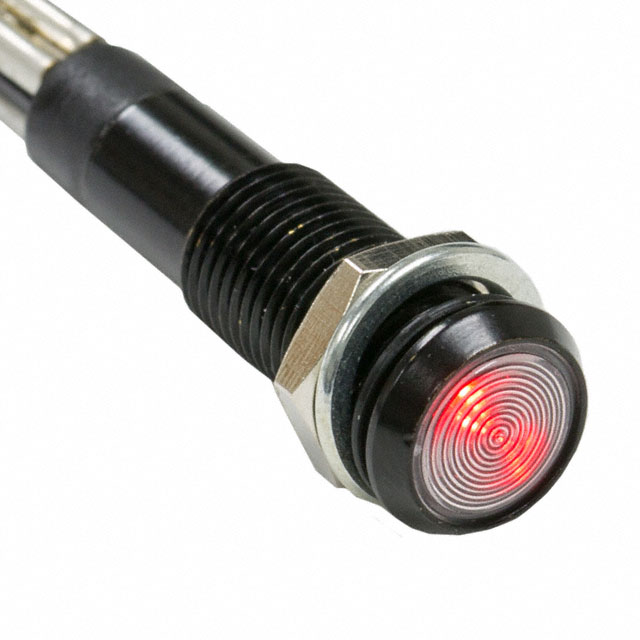

PM5-M124-RED

Active

Bivar Inc.

LED PANEL MOUNT INDICATOR, RED, 24 V, 8 MM, 20 MA, 20 MCD, IP67

Search across all available documentation for this part.

Active

Bivar Inc.

LED PANEL MOUNT INDICATOR, RED, 24 V, 8 MM, 20 MA, 20 MCD, IP67

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Angle	Panel Cutout Shape	Lens Color	Termination Style	Lens Transparency	Voltage [Min]	Voltage [Max]	Ratings	Features	Millicandela Rating	Lens Size [diameter]	Ingress Protection	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lamp Color	Wavelength - Peak
Bivar Inc. PM5-M124-RED	100 °	Round	Colorless	Quick Connect - 0.110" (2.8mm)	Fresnel	12 V	24 V	AC/DC	Auto-Dimming	20 mcd	10.2 mm	IP67	8.13 mm	0.32 in	LED	Red
Bivar Inc. PM5-M124-BLU	100 °	Round	Colorless	Quick Connect - 0.110" (2.8mm)	Fresnel	12 V	24 V	AC/DC	Auto-Dimming	20 mcd	10.2 mm	IP67	8.13 mm	0.32 in	LED	Blue	465 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Fresnel 100° 12V ~ 24V 20mA Quick Connect - 0.110" (2.8mm)
