BMA020-SHUTL

Obsolete

Bosch Sensortec

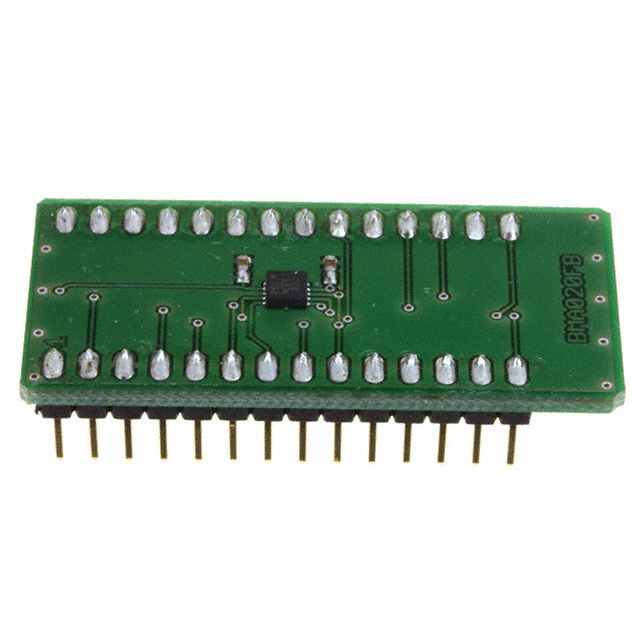

SHUTTLE BOARD BMA020

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMA020

Technical Specifications

Parameters and characteristics for this part

Part	Function	Contents	Type	Utilized IC / Part	Axis [z]	Axis [y]	Axis [x]	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (LSB/g)	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [Max]	Bandwidth [Min]
Bosch Sensortec BMA020-SHUTL	Accelerometer	Board(s)	Sensor	BMA020
Bosch Sensortec BMA020			Digital		Z	Y	X	4 g 8 g	-2 g	2 g	64 LSB/g 256 LSB/g	12-VFLGA	3.6 V	2 V	12-LGA (3x3)	I2C SPI	Surface Mount	85 °C	-40 °C	750 Hz	25 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA020 Accelerometer Sensor Platform Evaluation Expansion Board
