5530112400F

Active

DIALIGHT

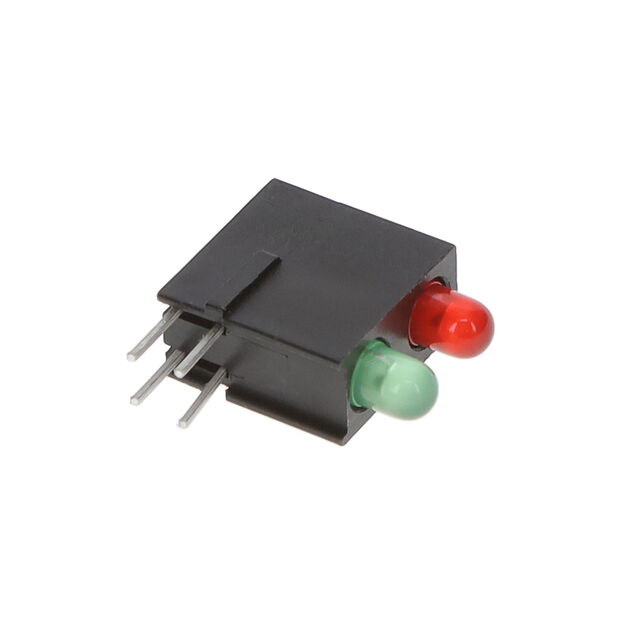

LED CBI 3MM BI-LVL GREEN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

5530112400F

Active

DIALIGHT

LED CBI 3MM BI-LVL GREEN/RED RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530112400F

Color	Red (x 1), Green (x 1)
Configuration	2 High
Current	10 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	10 mcd, 12.6 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V, 2 V
Wavelength - Peak	565 nm, 635 nm

5530112 Series

Part	Lens Style	Current	Color	Lens Size	Lens Size	Voltage Rating	Configuration	Millicandela Rating	Viewing Angle	Lens Type	Wavelength - Peak	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]
DIALIGHT 5530112400F	Round with Domed Top	10 mA	Green (x 1) Red (x 1)	3 mm	T-1	2 V 2.1 V	2 High	10 mcd 12.6 mcd	60 °	Diffused Tinted	565 nm 635 nm	Through Hole Right Angle
DIALIGHT 5530112300F		10 mA	Green (x 1) Red (x 1)			2 V 2.1 V	2 High		45 °	Diffused Tinted	563 nm 650 nm	Through Hole Right Angle	16 mcd	10 mcd
DIALIGHT 5530112810F
DIALIGHT 5530112803F	Round with Domed Top			3 mm	T-1							Through Hole Right Angle
DIALIGHT 5530112306F	Round with Domed Top	10 mA	Green (x 1) Red (x 1)	3 mm	T-1	2 V 2.1 V	2 High		45 °	Diffused Tinted	563 nm 650 nm	Through Hole Right Angle	16 mcd	10 mcd
DIALIGHT 5530112809F
DIALIGHT 5530112212F	Round with Domed Top	10 mA	Green (x 1) Red (x 1)	3 mm	T-1	2 V 2.1 V	2 High		45 °	Diffused Tinted	563 nm 650 nm	Through Hole Right Angle	16 mcd	10 mcd
DIALIGHT 5530112808F	Round with Domed Top			3 mm	T-1							Through Hole Right Angle
DIALIGHT 5530112210F	Round with Domed Top	10 mA	Green (x 1) Red (x 1)	3 mm	T-1	2 V 2.1 V	2 High	10 mcd 12.6 mcd	60 °	Diffused Tinted	565 nm 635 nm	Through Hole Right Angle
DIALIGHT 5530112807F	Round with Domed Top			3 mm	T-1							Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.32
		50	$ 1.38
		100	$ 1.28
		500	$ 1.11
		1000	$ 1.06
		2000	$ 1.01
		5000	$ 0.96
		10000	$ 0.93

Description

General part information

5530112 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 2.1V Green, 2V Red 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
